| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Country of Origin | |
| Current Rating | |
| Current Rating (Amps) | |
| Depth | |
| Height | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating | |
| Width |

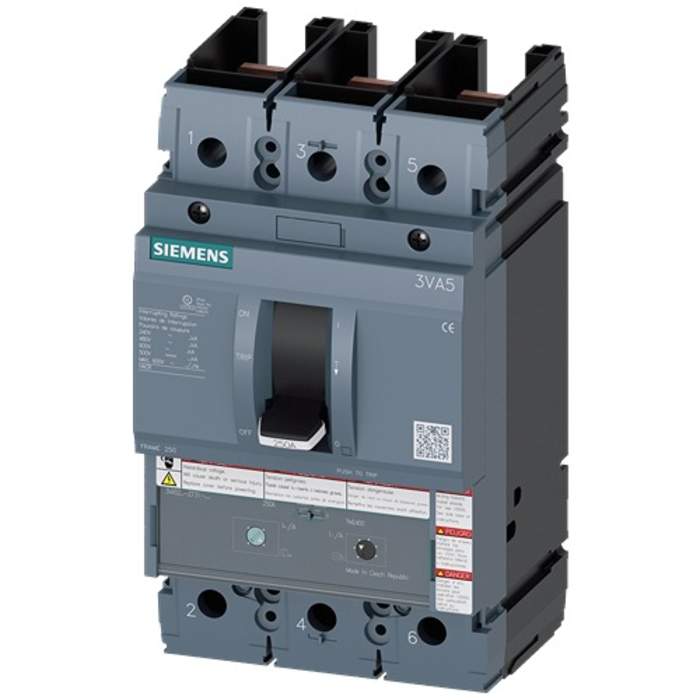

This Siemens SENTRON 3VA5 series molded case circuit breaker, part number 3VA5217-7EF31-2AA0, is designed for robust protection in electrical systems. It is a 3-pole unit with a current rating of 175A and a breaking capacity of 10kA, ensuring safe operation under high fault conditions.
The breaker features a fixed mounting type and is rated for AC voltages up to 690V. Its thermal magnetic tripping mechanism provides reliable protection. The dimensions are 83mm in depth, 105mm in width, and 185mm in height. The IP40 protection class offers defense against dust ingress.
Designed for demanding environments, this circuit breaker boasts high electrical endurance and a mechanical service life of up to 20000 cycles. It operates within a temperature range of -25°C to 70°C. The tripping characteristics include Type I, Type L, and Type N.
Ideal for industrial applications, including heating, air conditioning, and refrigeration, this breaker exemplifies safety and engineering innovation. It is manufactured in the Czech Republic.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 175A.
The breaking capacity is 10kA.
The rated AC voltage is 690V.
It has 3 poles.
The mounting type is fixed.
The operation temperature ranges from -25°C to 70°C.
The IP rating is IP40.
