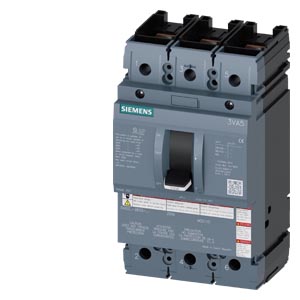

This Siemens 3VA5215-1BB32-0AA0 is a molded-case circuit breaker from the SENTRON 3VA5 series. It is designed as a 3-pole device with a rated operational current of 150A and a rated voltage of 690V AC.
The circuit breaker features a high short-circuit breaking capacity of 100kA at 480V, making it suitable for line protection. It operates with an MCS110 overcurrent release and includes self-protection with an Ii rating of 16 x In. The device is built for front connection with a nut keeper kit and supports screw connections for main current circuits.
With a mechanical service life of 20,000 switching cycles and electrical endurance ratings of up to 8,000 cycles at 380/415V, this breaker is built for durability. It has a maximum power loss of 19.6W and a net weight of 2.2 kg. The dimensions are 185mm in height, 105mm in width, and 83mm in depth. It is designed for DIN rail mounting.
This model is UL 489 listed as a HACR Type circuit breaker. It does not feature communication functions, measurement functions, undervoltage release, voltage trigger, or trip indicators.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated operational current is 150A at temperatures up to 70°C.
The operating voltage at AC rated value is 690 V.
The short-circuit breaking capacity is 100kA at 480V.
This is a 3-pole circuit breaker.
The mounting type is DIN Rail.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
