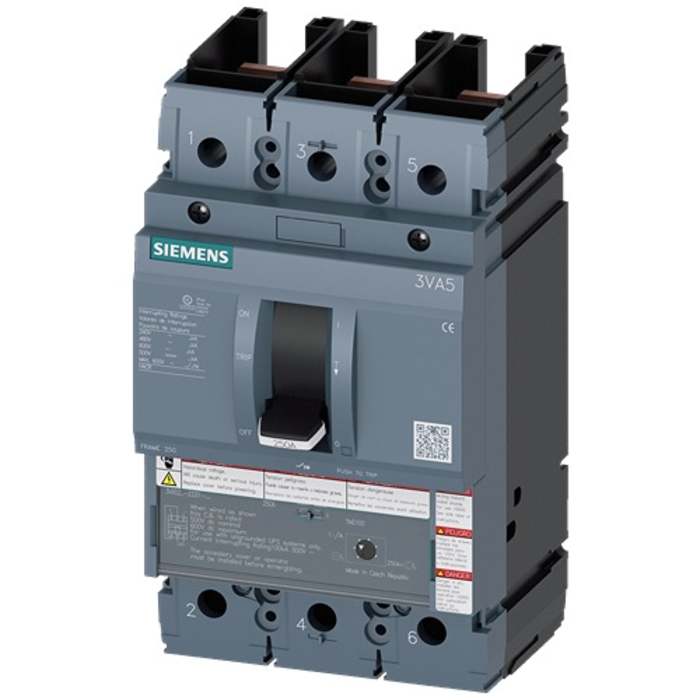

This Siemens SENTRON 3VA5 series molded case circuit breaker, part number 3VA5211-7ED31-2AA0, offers reliable protection for electrical systems. It is a 3-pole unit with a current rating of 110A and a significant breaking capacity of 10kA, ensuring safety under fault conditions.
The circuit breaker operates at a rated AC voltage of 690V and a rated DC voltage of 750V. It features a fixed mounting type and has dimensions of 185mm in height, 83mm in depth, and 105mm in width. The tripping characteristics include Type N, Type L, and Type I, with a thermal magnetic tripping mechanism.
Designed for demanding environments, this breaker boasts high electrical endurance and incorporates short circuit protection. It has an IP40 protection class, offering defense against dust ingress, and a mechanical service life of up to 20,000 cycles. The operating temperature range is from 25°C to 70°C, making it suitable for various industrial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 110A.
The breaking capacity is 10kA.
The rated AC voltage is 690V ac.
It has 3 poles.
The operating temperature range is from 25 °C to 70 °C.
The IP rating is IP40.
