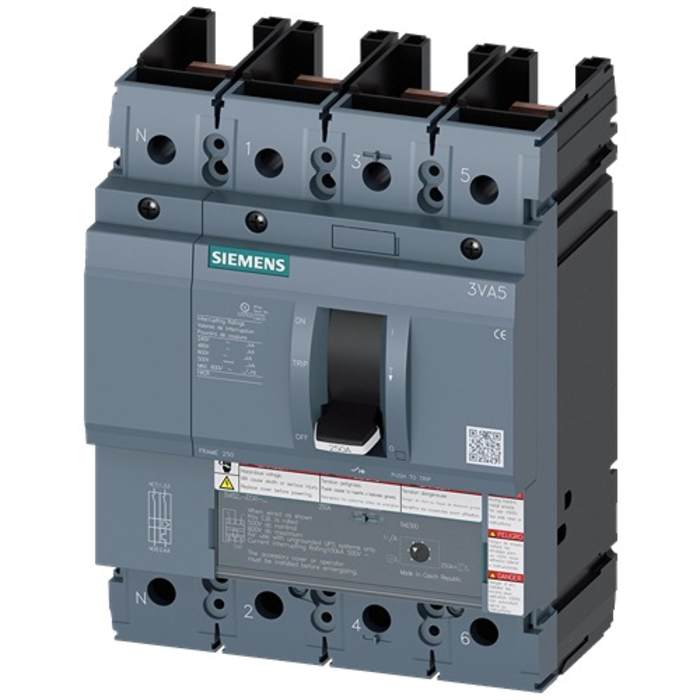

The Siemens 3VA5210-5EC41-2AA0 is a four-pole circuit breaker used for electrical circuit protection. It has a current rating of 100 amperes and a breaking capacity of 7 kiloamperes, suitable for high-current applications. The device is rated for AC voltages up to 690V and DC voltages up to 1000V, making it suitable for various industrial and commercial electrical systems.
Constructed with a fixed mount type, it measures 185mm in height, 140mm in width, and 83mm in depth. The breaker features thermal magnetic tripping mechanisms with tripping characteristics of Type L, Type N, and Type I. It has an ingress protection rating of IP40, providing limited protection against dust and contact with hazardous parts. The device is rated for operation within temperatures from -25°C to 70°C and has a mechanical service life of 20,000 cycles.
Designed for use in circuit protection applications, this breaker is suitable for installation in electrical panels and distribution boards where reliable circuit interruption is required under fault conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated AC voltage is 690V ac.
The rated DC voltage is 1000V dc.
The breaking capacity is 7kA.
The IP rating is IP40.
It has a mechanical service life of 20,000 cycles.
