3VA5195-6ED26-1AA0
Siemens
The Siemens 3VA5195-6ED26-1AA0 is a 2-pole molded-case circuit breaker rated for 15A and 415V AC. It features a breaking capacity of 65kA at 480V.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Voltage Rating |

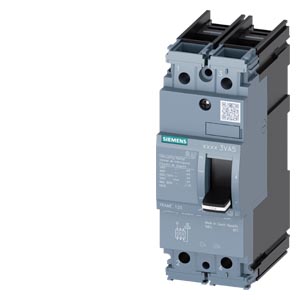

This Siemens 3VA5195-5ED26-0AA0 is a 2-pole molded-case circuit breaker from the 3VA51 series, rated for system protection. It features a TM210 trip unit with fixed overload (Ir=15A) and short-circuit (Ii=20 x In) protection.
The breaker operates at a rated voltage of 415V AC and has an insulation voltage of 600V. Its breaking capacity according to UL 489 is 35kA at 480V, and 18kA at 600Y/347V. The IEC 60947 breaking capacity (Icu) is 55kA at 415V.
With a mechanical service life of 20,000 cycles and electrical endurance of 8,000 cycles at 380/415V, this circuit breaker is built for durability. It is designed for DIN rail mounting and has a lever actuator.
Key electrical specifications include a maximum power loss of 6.5W and an operational current of 15A at 40°C, derating slightly at higher temperatures. The device is UL489 listed and meets CCC, CE, and VDE approval standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage at AC is rated for 415 V.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The breaking capacity at 480V is 35 kA.
This circuit breaker has 2 poles.
This circuit breaker supports DIN Rail mounting.
