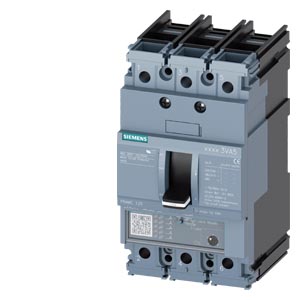

This Siemens 3VA5180-1MH36-0AA0 is a 3-pole molded-case circuit breaker designed for starter protection. It operates at a rated voltage of 690V and has a current rating of 80A, maintained across a wide temperature range from 40°C to 70°C.
The circuit breaker utilizes a TM120M overcurrent release with adjustable Ii settings ranging from 5 to 12 times the nominal current. It offers a maximum short-circuit breaking capacity (Icu) of 150 kA at 240V and 70 kA at 415V.
With a mechanical service life of 20,000 switching cycles and electrical endurance ratings of 8,000 cycles at 380/415V and 4,000 cycles at 690V, this breaker is built for durability. It is suitable for HACR type applications and features a DIN rail mounting type with a lever actuator. The device has a degree of protection of IP40.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is rated at 690 V AC.
It has 3 poles.
The insulation voltage is rated at 800 V.
The maximum short-circuit breaking capacity is 10 kA.
The typical mechanical service life is 20,000 switching cycles.
It is compliant with RoHS, REACH, and has approval from CCC and CE.
