3VA5170-5EC36-0AA0
Siemens
The 3VA5170-5EC36-0AA0 is a three-pole circuit breaker from Siemens rated for 70A and 35kA breaking capacity.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

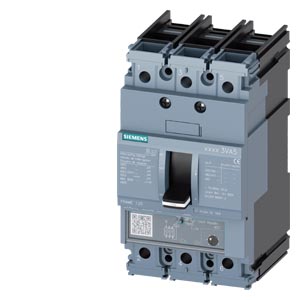

This Siemens 3VA51 molded-case circuit breaker, part number 3VA5170-6EC36-0AA0, is designed for system protection applications. It features a 3-pole configuration and a 70A current rating at 40°C, with a rated operational voltage of 690V AC.
The breaker is equipped with a TM230 trip unit offering LI protection function, with overload protection set at 70A and adjustable short-circuit protection from 5 to 10 times the rated current. It boasts a high breaking capacity class H, with a maximum short-circuit current (Icu) of 70kA at 415V and 65kA at 480V according to IEC 60947 and UL 489 standards, respectively.
With a mechanical service life of 20,000 switching cycles and electrical endurance ratings of up to 8,000 cycles, this circuit breaker is built for durability. It has a maximum power loss of 18.3W and a net weight of 1.034 kg. The mounting type is DIN rail.
This HACR Type circuit breaker is suitable for various applications requiring reliable overcurrent protection. It meets UL 489 standards and is marked with approval agencies including CCC, CE, UL489, and VDE.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated operational voltage for this circuit breaker at AC is 690V.
The operational current rating at 40°C is 70A.
The breaking capacity according to UL 489 at 480V is 65kA.
This circuit breaker has 3 poles.
The mounting type is DIN Rail.
The RoHS Status is RoHS3 Compliant.
