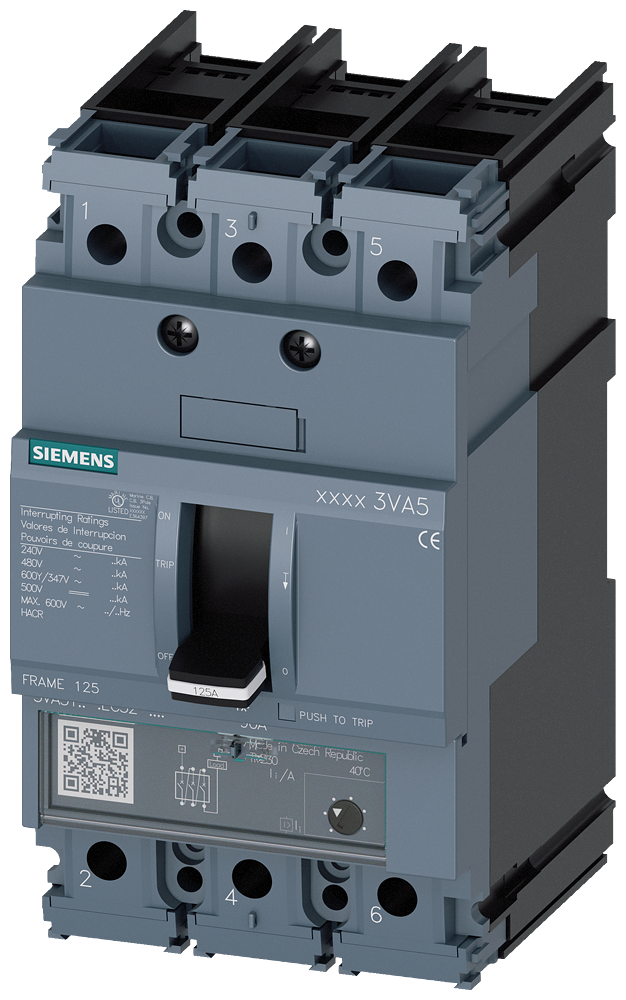

This Siemens 3VA5135-5EC32-1AA0 is a 3-pole molded-case circuit breaker from the 3VA5 series, designed for system protection. It features a thermal-magnetic trip unit (TM230) with a rated current of 35A and an overload protection setting (Ir) of 35A. The short-circuit protection (Ii) is adjustable from 5 to 10 times the rated current.
The circuit breaker operates at a rated voltage of 690V AC and has a breaking capacity of 35kA at 480V. It is suitable for HACR and HID type applications according to UL 489 standards. The device is designed for front connection and utilizes a nut keeper kit for secure termination.
With a mechanical service life of 20,000 cycles and electrical endurance ratings of up to 8,000 cycles, this breaker is built for durability. It has a net weight of 0.951 kg and dimensions of 76.2mm width, 140mm height, and 76.5mm depth. The mounting type is DIN Rail, and it has an IP40 degree of protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated operating voltage for this circuit breaker is 690 V AC.
The operational current rating at 40°C is 35 A.
The breaking capacity at 480V is 35 kA.
This circuit breaker uses a TM230 trip unit with LI protection function.
Yes, this circuit breaker is suitable for DIN rail mounting.
