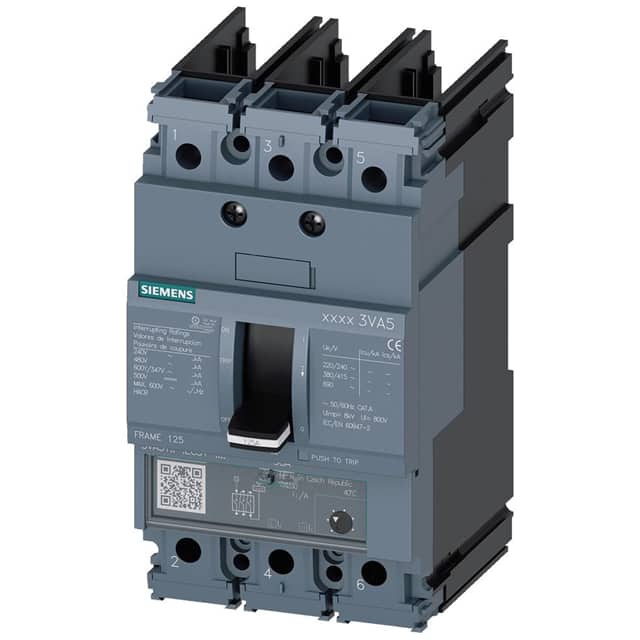

This Siemens 3VA5135-5EC31-0AA0 is a 3-pole molded-case circuit breaker designed for system protection. It features a rated operational current of 35A and a maximum operational voltage of 690V AC or 500V DC.
The circuit breaker provides a breaking capacity of 35kA at 480V according to UL 489 standards, and 85kA at 240V, 55kA at 415V, and 7kA at 690V according to IEC 60947 standards. The overcurrent release type is TM230 with LI protection function. It has a mechanical service life of typically 15,000 switching cycles and electrical endurance ratings varying by voltage and load conditions.
With a width of 76.2mm and height of 140mm, this breaker is suitable for DIN rail mounting. It operates within a maximum power loss of 11W. The product is designed for line protection and is HACR Type compliant.
Key electrical specifications include a rated permanent current of 35A and adjustable short-circuit protection (Ii) ranging from 175A to 350A. The insulation rated voltage is 800V.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
690V AC at 50/60Hz.
35A.
7kA.
DIN Rail mounting.
15,000 switching cycles.
