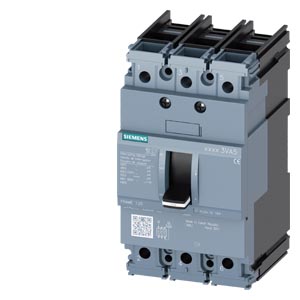

This Siemens 3VA5135-4ED36-1AA0 is a 3-pole molded-case circuit breaker from the 3VA51 series, designed for system protection. It features a rated operational current of 35A at 40°C and a rated voltage of 690V AC.
The circuit breaker has a breaking capacity of 25kA at 480V and 14kA at 600Y/347V, complying with UL489 standards. It includes a TM210 trip unit with LI protection function and fixed overload and short-circuit settings.
With a mechanical service life of 20,000 switching cycles and electrical endurance ratings up to 8,000 cycles, this breaker is built for durability. It is suitable for HACR and HID type applications and is naval rated. The device has a power loss of 11.4W maximum and an IP40 degree of protection.
Mounting is via DIN rail, and it features a rocker lever actuator. The connection is designed for aluminum lugs on both sides. The breaker operates at 50°C ambient temperature.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 690 V AC.
The operational current rating is 35 A at 40°C.
The breaking capacity is 25 kA at 480 V.
This circuit breaker has 3 poles.
It uses a TM210 trip unit with LI protection.
Yes, it is designed as a HACR Type circuit breaker.
The operating temperature is 50°C.
