| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Height | |
| Illumination | |
| Length | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Voltage Rating | |
| Weight |

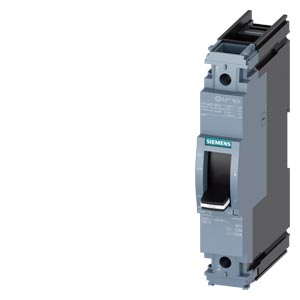

This Siemens 3VA5125-6ED16-0AA0 is a 1-pole molded-case circuit breaker from the 3VA51 series, designed for system protection applications. It features a rated operational current of 25A at 40°C and a maximum operating voltage of 415V AC.
The circuit breaker boasts a high breaking capacity, rated at 50kA at 277V according to UL 489 standards, and 5kA at 415V according to IEC 60947. It utilizes a TM210 trip unit with fixed overload (Ir=25A) and short-circuit (Ii=12xIn) protection.
Designed for DIN rail mounting, this device has a mechanical service life of 20,000 switching cycles. Its construction is suitable for HACR and HID type applications. The breaker has a power loss of 2.87W and a net weight of 0.401 kg.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for this circuit breaker is 415 V at AC.
The current rating is 25A.
The breaking capacity is 50kA at 277V according to UL 489, and 5kA at 415V according to IEC 60947.
This circuit breaker is designed for DIN rail mounting.
This component is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
