3VA5112-5ED12-0AA0
Siemens

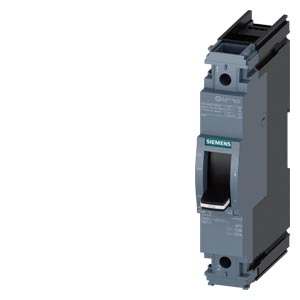

The Siemens 3VA5112-5ED12-0AA0 is a 1-pole molded-case circuit breaker designed for system protection. It features a 125A operational current rating at 40°C and a 415V AC operating voltage.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating (Amps) | |
| Depth | |
| Height | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating | |
| Width |
This Siemens SENTRON 3VA5 series molded-case circuit breaker, part number 3VA5112-6ED12-0AA0, is designed for system protection. It is a 1-pole breaker with a rated operational current of 125A at 40°C and a maximum operating voltage of 415V AC. The breaker offers a breaking capacity of 50kA at 277V according to UL 489 standards and 5kA at 415V according to IEC 60947.
Key electrical features include a TM210 overcurrent release with LI protection function. The mechanical service life is rated at a typical 20,000 switching cycles, with electrical endurance varying by voltage and load conditions. It is designed for DIN rail mounting.
Additional specifications include a rated insulation voltage of 500V and a maximum power loss of 10.03W. The breaker is compliant with RoHS3, REACH Unaffected, and MSL 1 standards. Its dimensions are 140mm in height, 25.4mm in width, and 76.5mm in depth.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The circuit breaker has a rated operational voltage of 415 V AC and a maximum rated operational voltage of 125 V DC.
The breaking capacity is 50 kA at 277 V according to UL 489 and 5 kA at 415 V according to IEC 60947.
The operational current is 125 A at 40°C, with derated values at higher temperatures.
This circuit breaker is designed for DIN rail mounting.
This component is RoHS3 Compliant.
