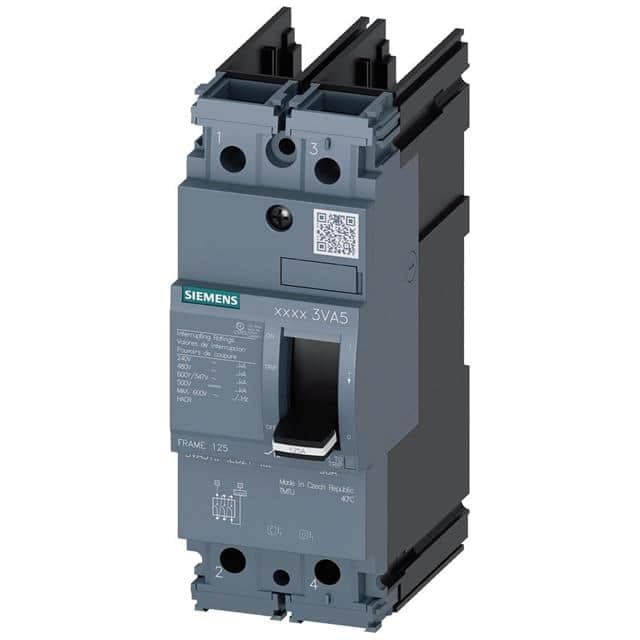

3VA5110-5ED21-0AA0
Siemens
The Siemens 3VA5110-5ED21-0AA0 is a 2-pole molded-case circuit breaker rated for 100A and a 35kA breaking capacity at 480V. It features DIN rail mounting.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Depth | |
| Height | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Overload Protection | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating | |
| Width |
This Siemens 3VA5110-6ED21-0AA0 is a 2-pole molded-case circuit breaker from the 3VA5 series, designed for system protection. It has a permanent rated current of 100A and a maximum rated operational current of 125A.
The circuit breaker offers a breaking capacity of 65kA at 480V and 70kA at 415V, with a breaking capacity class of H. It is equipped with a TM210 overcurrent release providing LI protection functionality. The rated insulation voltage is 600V, and the maximum rated operational voltage is 415V AC or 250V DC.
With a mechanical service life of 15,000 switching cycles and electrical endurance ratings of up to 8,000 cycles at 480V, this breaker is built for durability. Its dimensions are 140mm in height, 50.8mm in width, and 76.5mm in depth, designed for DIN rail mounting.
This HACR Type circuit breaker is UL 489 listed, along with CCC, CE, EAC, and VDE approvals, making it suitable for various industrial applications requiring reliable circuit protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The permanent rated current is 100A, with an operational current of 100A at 40°C.
The breaking capacity is 65kA at 480V and 70kA at 415V.
The maximum rated operational voltage is 415V AC and 250V DC.
It features a TM210 overcurrent release with LI protection functionality.
The dimensions are 140mm in height, 50.8mm in width, and 76.5mm in depth.
Yes, the product is listed as RoHS3 Compliant.
