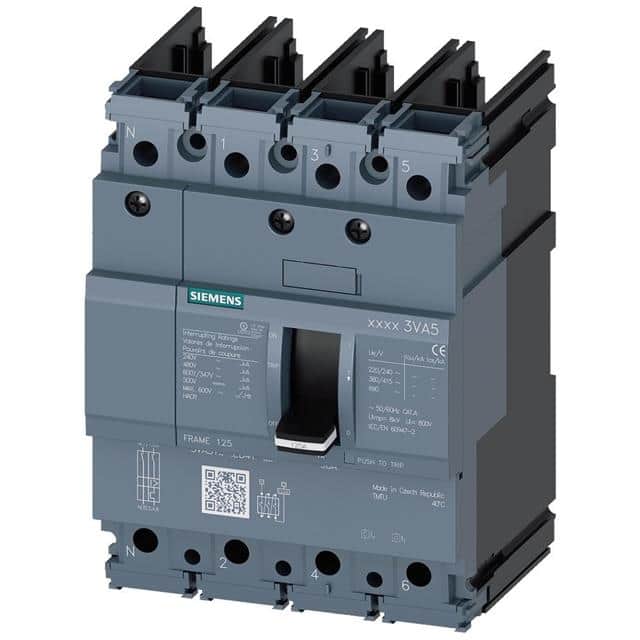

This Siemens 3VA5110-5GD41-0AA0 is a 4-pole molded-case circuit breaker designed for system protection. It features a rated operational current of 100A at 40°C and a maximum operational voltage of 690V AC or 600V DC. The breaker provides overload protection with an adjustable response value (Ir) of 100A and fixed short-circuit protection (Ii) at 10 times the rated current.
With a breaking capacity of 35kA at 480V (UL 489) and 55kA at 415V (IEC 60947), this circuit breaker ensures reliable protection against short circuits. It is suitable for HACR Type applications and mounts via DIN rail. The mechanical service life is typically 15,000 switching cycles, with electrical endurance varying based on voltage and load conditions.
Key electrical specifications include an insulation voltage of 800V and power loss not exceeding 22.8W. The overcurrent release type is TM210 with LI protection function. It also includes 100% N-conductor protection. This model does not feature communication or other measurement functions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum operational voltage is 690 V AC.
The current rating is 100 A.
The breaking capacity is 35 kA at 240 V.
It uses DIN rail mounting.
It has four poles.
