| Category | |
| Manufacturer Name | |
| Actuator Diameter | |
| Actuator Material | |
| Actuator Type | |
| Circuit | |
| Color | |
| Contact Material | |
| Current Rating (Amps) | |
| Illumination Type, Color | |
| Illumination Voltage (Nominal) | |
| Ingress Protection | |
| Lead Spacing | |
| Light Source | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage Rating |

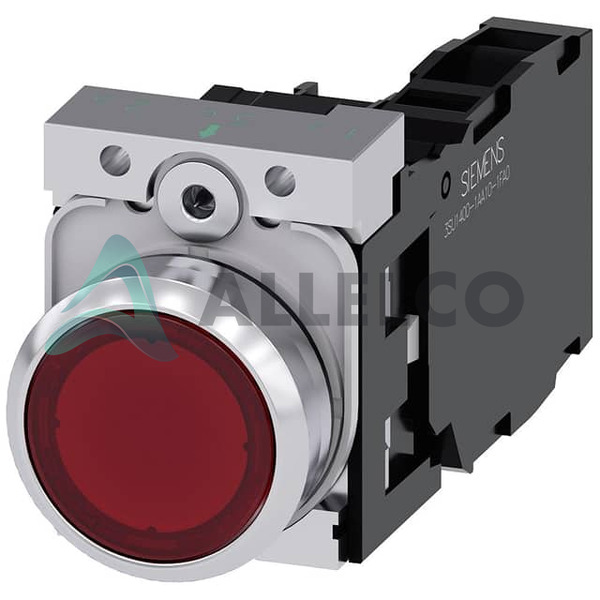

The Siemens 3SU11520AB201CA0 is an illuminated pushbutton from the SIRIUS ACT product line, designed for panel mounting with a 22mm cutout. This complete unit features a shiny metal front ring and a red, flat plastic actuator with a round shape.
It operates as a momentary contact type switch with one normally closed (NC) contact. The integrated LED module is illuminated with 24 VAC/DC. The pushbutton is rated for a voltage of up to 500V and a current of 10A (AC/DC). It offers a high degree of protection with IP66, IP67, and IP69K ratings, making it suitable for demanding environments.
Key technical specifications include an insulation voltage of 320V, surge voltage resistance of 4kV, and a pollution degree of 3. The mechanical service life is rated for a typical 3,000,000 switching cycles, and electrical endurance is rated for a typical 10,000,000 switching cycles. The operating temperature range is -25°C to 70°C.
This illuminated pushbutton is designed for reliable operation in various industrial applications. Its robust construction and high ingress protection ensure performance in harsh conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is rated for 5 to 500V at AC 50 Hz, AC 60 Hz, and DC.
The illumination voltage for the LED module is a nominal 24 VAC/DC.
This pushbutton has an ingress protection rating of IP66, IP67, and IP69K.
The operating temperature range is from -25°C to 70°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1.
