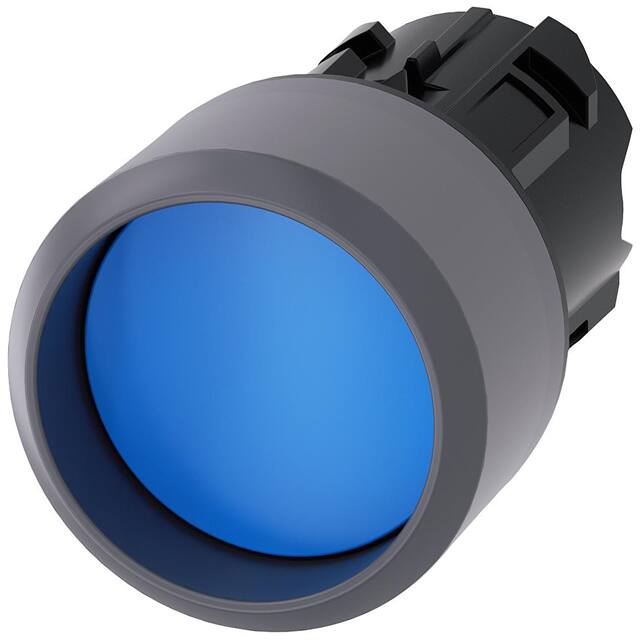

3SU10300CB500AA0 The Siemens 3SU10300CB500AA0 is a momentary pushbutton with a blue, flat plastic actuator and a sand gray metal front ring. It requires a contact block and is non-illuminated.
Mfr Part #:

3SU10300CB500AA0

Available from 1 distributors
Mfr Name: Siemens
Siemens
The Siemens 3SU10300CB500AA0 is a momentary pushbutton with a blue, flat plastic actuator and a sand gray metal front ring. It requires a contact block and is non-illuminated.
✓ Total Stock: 1 pcs
$ Price Range: $0.75

3SU10300CB500AA0 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3SU10300CB500AA0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
(Select First, Then Apply Filters) Compatible Series
Actuator Color
Actuator Diameter
Actuator Material
Actuator Type
Contact Type
Height
Illumination
Light Source
Operating Temperature
Panel Cutout Dimensions
Requires
Storage Temperature
Type
Width
View Similar Products (0)

3SU10300CB500AA0 Description

Short technical summary and product information.

The Siemens 3SU10300CB500AA0 is a component from the SIRIUS ACT product line, specifically a pushbutton designed as an actuating/signaling element. This momentary contact pushbutton features a round, blue, flat plastic actuator with a raised, sand gray metal front ring.



Designed for a 22.3mm round panel cutout, this component requires a separate contact block. It is non-illuminated and offers a high degree of protection with IP66, IP67, and IP69 ratings, along with NEMA 1, 2, 3, 3R, 4, 4X, 12, and 13 protection.



Key mechanical and environmental specifications include a typical mechanical service life of 10,000,000 switching cycles, shock resistance of 15g / 11 ms, and vibration resistance of 10 to 500 Hz at 5g. The operating temperature range is -25 to +70 °C.



This pushbutton is part of the 3SU1 product type and is compatible with Siemens 22mm systems. Its robust construction and environmental ratings make it suitable for various industrial applications.

3SU10300CB500AA0 Quick Information

Product Type: Pushbutton
Series: Plastic with metal front ring, matt, 22 mm
Canonical Name: Siemens SIRIUS ACT 3SU1 Pushbutton, Momentary, Blue, Flat Button, Non-Illuminated
Subcategory: Actuating/Signaling Element

3SU10300CB500AA0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3SU10300CB500AA0 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

3SU10300CB500AA0 Features

  • Momentary contact pushbutton actuator.
  • Blue, flat plastic button with metal front ring.
  • 22.3mm round panel cutout required.
  • IP66, IP67, IP69 rated for protection.
  • Non-illuminated, requires contact block.

3SU10300CB500AA0 Applications

  • Industrial control panel applications.
  • Machine interface controls.
  • Signaling and command functions.
  • Harsh environment installations.

3SU10300CB500AA0 FAQs

6 frequently asked questions generated from this part’s specifications.
What type of actuator is the Siemens 3SU10300CB500AA0?

The Siemens 3SU10300CB500AA0 is a momentary contact pushbutton with a flat, round, blue plastic actuator.

What are the environmental protection ratings for this pushbutton?

This pushbutton has IP66, IP67, and IP69 protection ratings, and a NEMA rating of 1, 2, 3, 3R, 4, 4X, 12, 13.

What is the operating temperature range for the 3SU10300CB500AA0?

The operating temperature range for this pushbutton is -25 to +70 °C.

What is the mechanical service life of the Siemens 3SU10300CB500AA0?

The typical mechanical service life is 10,000,000 switching cycles.

What is the required panel cutout size for this pushbutton?

The required panel cutout dimensions are 22.3mm round.

Does this pushbutton require a contact block?

Yes, this pushbutton requires a contact block.
