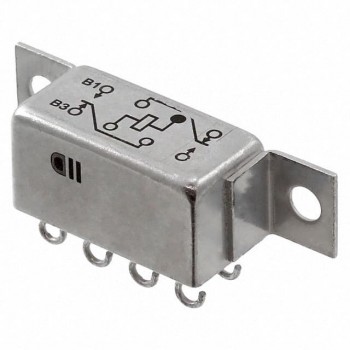

3SBC1506A2 The GE 3SBC1506A2 is a general purpose DPDT relay with a 2A contact rating and 26.5VDC coil voltage. It features a hermetically sealed design and chassis mount.
Mfr Part #:

3SBC1506A2

Available from 1 distributors
Mfr Name: GE
GE
The GE 3SBC1506A2 is a general purpose DPDT relay with a 2A contact rating and 26.5VDC coil voltage. It features a hermetically sealed design and chassis mount.
✓ Total Stock: 8 pcs
$ Price Range: $1.20

3SBC1506A2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3SBC1506A2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Current
Coil Type
Coil Voltage
Contact Form
Contact Rating (Current)
Failure Rate
Mounting Type
Must Operate Voltage
Must Release Voltage
Operate Time
Operating Temperature
Relay Type
Release Time
Seal Rating
Switching Voltage
Termination Style
View Similar Products (0)

3SBC1506A2 Description

Short technical summary and product information.

The GE 3SBC1506A2 is a general purpose electromechanical relay designed for demanding applications. It features a DPDT (2 Form C) contact configuration with a current rating of 2A and a maximum switching voltage of 115VAC or 28VDC.



The relay operates on a 26.5VDC coil voltage with a coil current of 19.6 mA. It is a non-latching type with a quick operate and release time of 4 ms. The operating temperature range is -65°C to 125°C, making it suitable for harsh environments.



Designed for reliability, the 3SBC1506A2 has a hermetically sealed enclosure and is equipped with solder hook termination. It is designed for chassis mounting, providing a secure and stable installation. This relay is part of the 3SBC series, which includes military-grade components.



Key specifications include a must-operate voltage of 13.5 VDC and a must-release voltage of 1.5 VDC. The series designation includes Military, MIL-R-39016/13, 3SBC, and CII.

3SBC1506A2 Quick Information

Product Type: Relay
Series: 3SBC
Canonical Name: General Purpose DPDT Relay
Subcategory: General Purpose Relay

3SBC1506A2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3SBC1506A2 Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

3SBC1506A2 Features

  • DPDT contact form with 2A rating.
  • 26.5VDC coil voltage.
  • Hermetically sealed for protection.
  • Chassis mount with solder hook termination.
  • Wide operating temperature range.

3SBC1506A2 Applications

  • Suitable for general purpose switching.
  • Ideal for industrial control systems.
  • Used in demanding environmental conditions.
  • Reliable for military applications.

3SBC1506A2 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the coil voltage for the 3SBC1506A2 relay?

The coil voltage for the 3SBC1506A2 relay is 26.5 VDC.

What is the contact form of the 3SBC1506A2 relay?

The 3SBC1506A2 relay has a DPDT (2 Form C) contact form.

What is the maximum current rating for the 3SBC1506A2 relay?

The maximum current rating for the 3SBC1506A2 relay is 2 A.

What is the operating temperature range of the 3SBC1506A2 relay?

The operating temperature range for the 3SBC1506A2 relay is -65°C to 125°C.

How is the 3SBC1506A2 relay mounted?

The 3SBC1506A2 relay is designed for chassis mounting.

What type of termination does the 3SBC1506A2 relay use?

The 3SBC1506A2 relay uses solder hook termination.
