| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Depth | |
| For Use With | |
| Height | |
| Operating Temperature | |
| Storage Temperature | |
| Width |

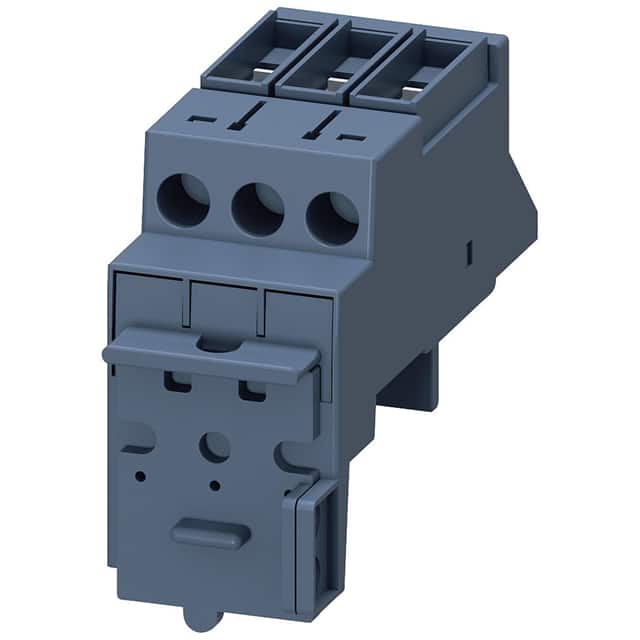

This Siemens 3RV29381A is a disconnector module, part of the SIRIUS product line, designed for use with motor circuit breakers of size S2. It offers a visible isolating distance and the capability to be locked in the disengaged position for enhanced safety.
The module operates within an ambient temperature range of -20°C to +70°C during operation and -50°C to +80°C during storage. Its dimensions are 55mm in width, 57mm in height, and 149mm in depth.
Certifications include CE, UL, CSA, and CCC, indicating broad compliance for various industrial applications. This disconnector module is suitable for motor circuit breaker applications, providing a reliable interface for isolation.
Further information and support resources, including catalogs, online ordering, and technical documentation, are available through Siemens' official channels.
-20 °C to +70 °C.
-50 °C to +80 °C.
55 mm width, 57 mm height, 149 mm depth.
S2 size.
Disconnect Switch.
Siemens 3RV2 circuit breakers.
Yes, it provides a visible isolating distance and can be locked in the disengaged position.
