| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Connection Type | |
| Depth | |
| For Use With | |
| Height | |
| Mounting Type | |
| Operating Temperature | |
| Rated Current | |
| Storage Temperature | |
| Termination Style | |
| Width |

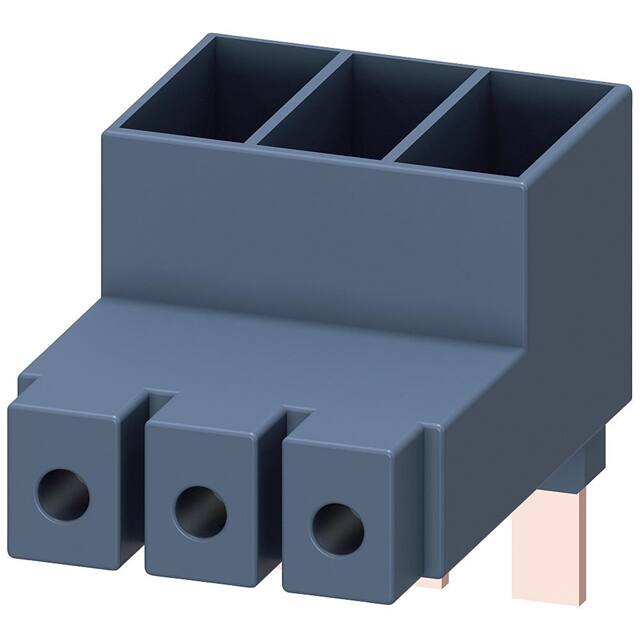

This Siemens 3RV29355E is a three-phase feeder terminal, part of the SIRIUS product line, specifically designed for self-protection combination motor controllers (Type E) with 3RV2 Size S2 circuit breakers. It facilitates connection to a three-phase busbar from the top.
Key electrical specifications include a maximum insulation voltage of 690V (with degree of pollution 3 at AC rated value) and a maximum ampacity of 105A. The terminal supports a wide range of conductor cross-sections for the main current circuit, including solid, stranded, and finely stranded conductors with core end processing, accommodating sizes from 2.5 mm² up to 70 mm² (depending on type) and AWG sizes from 10 to 2/0.
Mechanically, the terminal has dimensions of 54.5 mm in width, 65.8 mm in height, and 76.5 mm in depth. It features screw-type terminals for electrical connections. The operating temperature range is from -20°C to +60°C, with a storage temperature range of -50°C to +80°C. The front of the unit has an IP20 protection class and is designed to be finger-safe for vertical contact.
Certificates of suitability include CE, UL, CSA, and CCC. This feeder terminal is suitable for various industrial applications requiring robust and reliable power distribution connections.
The maximum ampacity is 105 A.
The insulation voltage is rated at 690 V with degree of pollution 3 at AC rated value.
The dimensions are 54.5 mm in width, 65.8 mm in height, and 76.5 mm in depth.
The operating temperature range is -20 °C to +60 °C.
It supports solid, stranded, and finely stranded conductors with core end processing, with cross-sections ranging from 2.5 mm² to 70 mm².
The protection class on the front is IP20.
The rated power is 30 kW at 400 V.
