| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Connection Type | |
| Depth | |
| For Use With | |
| Height | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Width |

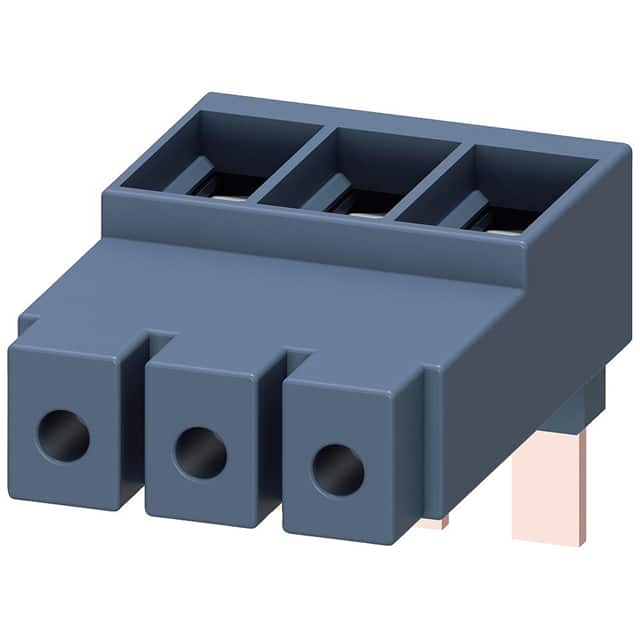

This Siemens SIRIUS 3RV29355A is a three-phase supply terminal designed for top feed connections to Size S2 bus bars. It provides a maximum ampacity of 105A and an insulation voltage rating of 690V AC with a pollution degree of 3.
The terminal features screw-type connections for main current circuits and supports a wide range of conductor cross-sections, including solid, stranded, and finely stranded wires, as well as AWG cables. Its dimensions are 54.5mm in width, 50.8mm in height, and 76.5mm in depth.
With an IP20 protection rating on the front, it offers finger-safe touch protection for vertical contact. The operating temperature range is -20°C to +60°C, with storage temperatures from -50°C to +80°C. The product is certified with CE, UL, CSA, and CCC approvals.
The maximum ampacity is 105A.
The insulation voltage rating is 690V.
The dimensions are 54.5mm width, 50.8mm height, and 76.5mm depth.
The operating temperature range is -20°C to +60°C.
It uses screw-type terminals for the main current circuit.
