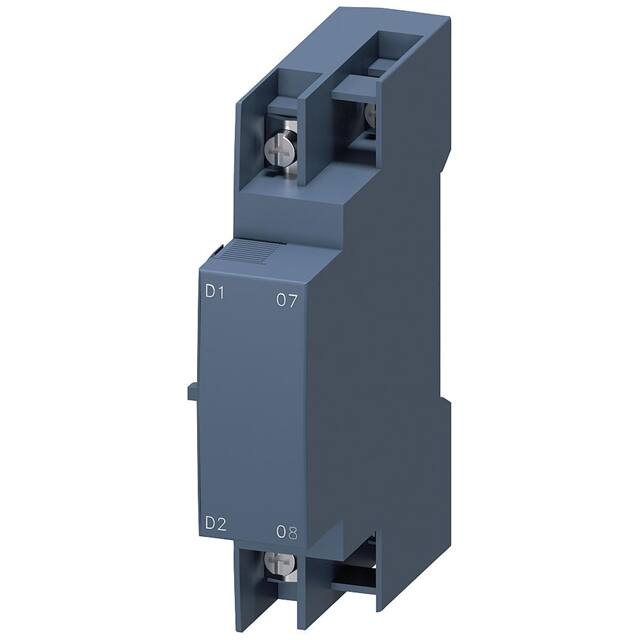

3RV29224CV1 Siemens 3RV29224CV1 undervoltage release with a rated control supply voltage of 480 V AC at 60 Hz. It features 2 normally open auxiliary contacts.
Mfr Part #:

3RV29224CV1

Mfr Name: Siemens
Siemens
Siemens 3RV29224CV1 undervoltage release with a rated control supply voltage of 480 V AC at 60 Hz. It features 2 normally open auxiliary contacts.
Stock on Request

3RV29224CV1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Depth
For Use With
Height
Operating Temperature
Storage Temperature
Width

3RV29224CV1 Description

Short technical summary and product information.

The Siemens 3RV29224CV1 is an undervoltage release accessory designed for circuit protection applications. It operates with a control supply voltage of 480 V AC at 60 Hz, or 415 V AC at 50 Hz. The device includes 2 normally open (NO) auxiliary contacts for status signaling.



This component has a rated insulation voltage of 690 V AC and is designed for a degree of pollution of 3. It offers finger-safe touch protection on the front according to IEC 60529, with an IP00 protection class. The operating temperature range is -20 to +60 °C, and the storage temperature range is -50 to +80 °C.



The 3RV29224CV1 has compact dimensions of 18.5 mm width, 90 mm height, and 68 mm depth, making it suitable for integration into control panels and motor starter assemblies.

3RV29224CV1 Quick Information

Product Type: Undervoltage Release
Canonical Name: Siemens 3RV29224CV1 Undervoltage Release
Subcategory: Accessories

3RV29224CV1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3RV29224CV1 Features

  • Rated control supply voltage 480 V AC at 60 Hz.
  • Includes 2 normally open auxiliary contacts.
  • Rated insulation voltage of 690 V AC.
  • Compact dimensions: 18.5 x 90 x 68 mm.
  • Operating temperature range -20 to +60 °C.

3RV29224CV1 Applications

  • Undervoltage release for Siemens 3RV2 motor circuit breakers.
  • Protects motors against undervoltage supply conditions.
  • Suitable for S00, S0, S2, S3 circuit breakers.
  • Provides two normally open auxiliary contacts.
  • Rated for 415 V AC, 50 Hz and 480 V AC, 60 Hz.

3RV29224CV1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the control supply voltage for the Siemens 3RV29224CV1?

The rated control supply voltage is 480 V AC at 60 Hz or 415 V AC at 50 Hz.

How many auxiliary contacts does the 3RV29224CV1 have?

It has 2 normally open (NO) auxiliary contacts.

What is the operating temperature range of the 3RV29224CV1?

The operating temperature range is -20 to +60 °C.

What is the protection class of the Siemens 3RV29224CV1?

The protection class on the front is IP00 according to IEC 60529.

What are the dimensions of the 3RV29224CV1?

The dimensions are 18.5 mm width, 90 mm height, and 68 mm depth.
