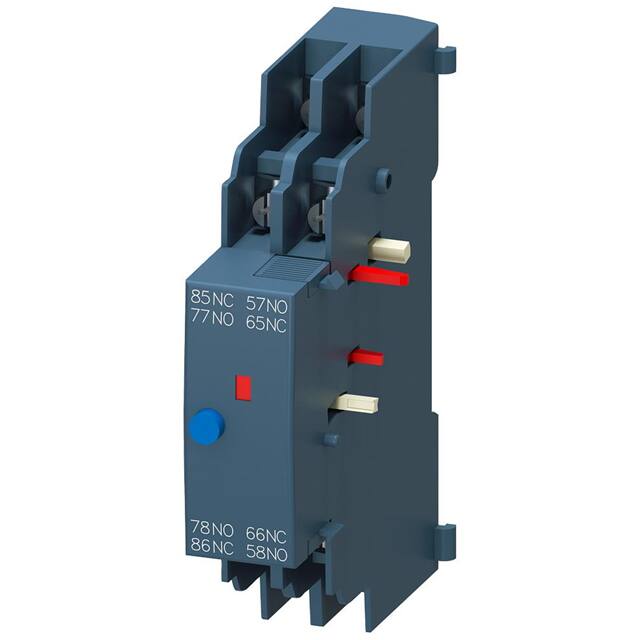

The Siemens 3RV29214M is a signaling switch accessory for SIRIUS circuit breakers. It offers a design with separate tripped signal and short circuit alarm capabilities, each featuring 1 normally open (NO) and 1 normally closed (NC) instantaneous contact. This switch is compatible with circuit breaker sizes S00, S0, S2, and S3.
The auxiliary circuit supports operational currents up to 10A at AC-12 and 6A at AC-15 (24V). It can handle DC-13 loads up to 2A at 24V. The operating temperature range for this device is -20°C to +60°C, with storage temperatures from -50°C to +80°C.
Installation is facilitated by a plug-in fixing method. The electrical connection for the auxiliary and control circuit utilizes a ring cable lug connection. This product carries certifications including CE, UL, CSA, and CCC.
Key specifications include dimensions of 18mm width, 90mm height, and 68mm depth. The Siemens 3RV29214M is suitable for various industrial applications requiring reliable signaling for circuit breaker status.
-20°C to +60°C.
10A at 24V, 230V, 400V, and 690V.
18mm width, 90mm height, 68mm depth.
S00, S0, S2, S3.
Plug-in.
Ring cable connection.
-50°C to +80°C.
