| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Depth | |
| For Use With | |
| Height | |
| Mounting Type | |
| SVHC Present | |
| Width |

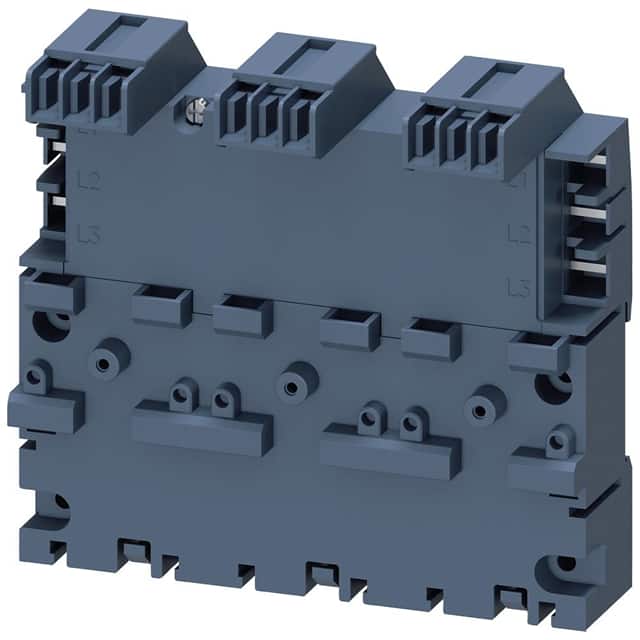

This Siemens 3RV29174B is a three-phase busbar designed for system expansion, specifically for use with 3RV2 circuit breakers in sizes S00 and S0. It features a plug-in electrical connection without terminals and has a rated operational current of 63A.
The busbar has a width of 136.4 mm, a height of 129 mm, and a depth of 58.5 mm. It is designed for snap-on fastening onto a 35 mm standard rail and can be mounted in any position. The front offers IP00 protection, which can be upgraded to IP20 with a cover, providing finger-safe touch protection.
Required spacing for live and grounded parts is specified, with 10 mm upwards and 0 mm backwards and to the side. This component is part of the SIRIUS product line, known for its comprehensive system solutions in industrial automation and control.
Certificates and approvals are available, including a Declaration of Conformity. Further information, including datasheets, catalogs, and online ordering systems, can be accessed via Siemens' Industry Mall and Information- and Downloadcenter.
63 A.
Snap-on fastening on 35 mm standard rail.
IP00 on the front, IP20 with cover.
Width 136.4 mm, height 129 mm, depth 58.5 mm.
S00 and S0.
3.
10 mm for live parts, grounded parts, and side-by-side mounting.
