| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Depth | |
| For Use With | |
| Height | |
| Mounting Type | |
| Width |

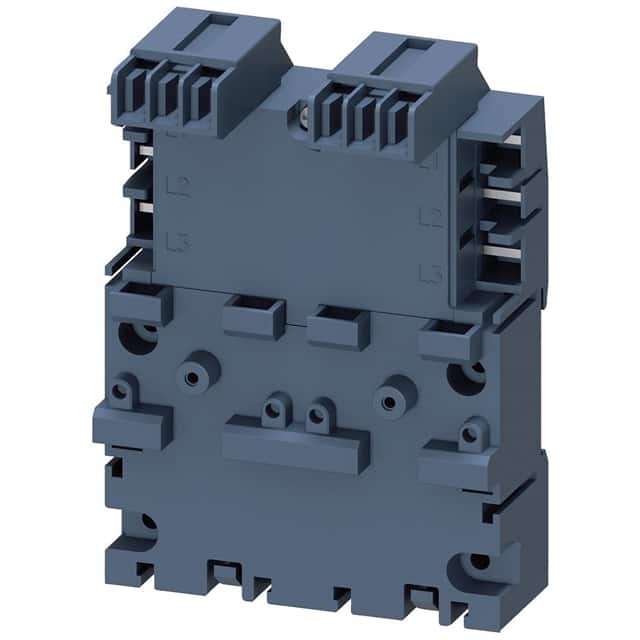

The Siemens 3RV29174A is a 3-phase busbar accessory designed for expanding electrical systems. It is specifically engineered for compatibility with Siemens 3RV2 circuit breakers in sizes S00 and S0.
This busbar features an operational current rating of 63A and a 3-pole configuration for the main current circuit. It utilizes a plug-in connection type without terminals, simplifying installation. The dimensions are 91.4 mm in width, 129 mm in height, and 58.5 mm in depth.
Installation is facilitated by a snap-on fastening method onto a standard 35 mm rail. The protection class on the front is IP00, or IP20 with a cover, and it offers finger-safe touch protection from the front with a cover. Required spacing for live and grounded parts is specified, with 10 mm upwards and 0 mm backwards and sideways.
This product is part of the SIRIUS product brand from Siemens, aimed at providing reliable system expansion solutions.
The rated operational current is 63 A.
It is compatible with circuit-breakers of sizes S00 and S0 from the 3RV2 series.
It mounts via snap-on fastening on a 35 mm standard rail.
The protection class on the front is IP00, or IP20 with a cover.
The busbar has a width of 91.4 mm, a height of 129 mm, and a depth of 58.5 mm.
It has 3 poles for the main current circuit.
The electrical connection for the main current circuit is plug-in without terminals.
