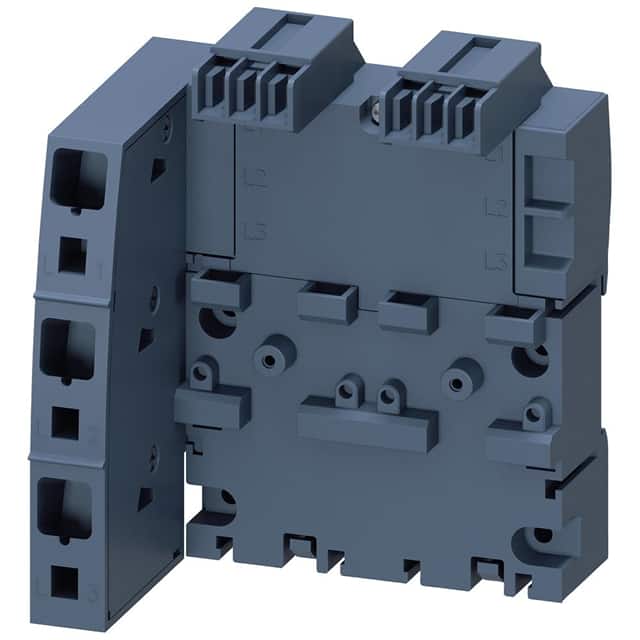

This Siemens 3RV29171A is a three-phase busbar with an infeed on the left, specifically designed for two circuit breakers of size S00 and S0. It operates with a rated current of 63A and utilizes spring-loaded terminals for electrical connections.
The busbar has a width of 110 mm, a height of 129 mm, and a depth of 86.5 mm. It is designed for snap-on fastening onto a standard 35 mm rail, allowing for flexible mounting positions.
Protection class IP00 is specified for the front, with IP20 achievable when a cover is used and a 25 mm² conductor cross-section is present at the infeed terminal. Touch protection on the front is finger-safe for vertical contact. Required spacing for live and grounded parts is 10 mm upwards, with 0 mm backwards and to the side.
63 A.
It is designed for Siemens 3RV2 circuit breakers in sizes S00 and S0.
Snap-on fastening on a 35 mm standard rail.
IP00; IP20 with cover and 25 mm² conductor cross-section at the infeed terminal.
Spring-loaded terminals.
110 mm width, 129 mm height, 86.5 mm depth.
3 poles.
