3RV29021AS0
Siemens
Siemens 3RV29021AS0 is an undervoltage release designed for use with 3RV2 circuit breakers. It operates with AC control supply voltages from 500-600V.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Depth | |
| For Use With | |
| Height | |
| Mounting Type | |
| Width |

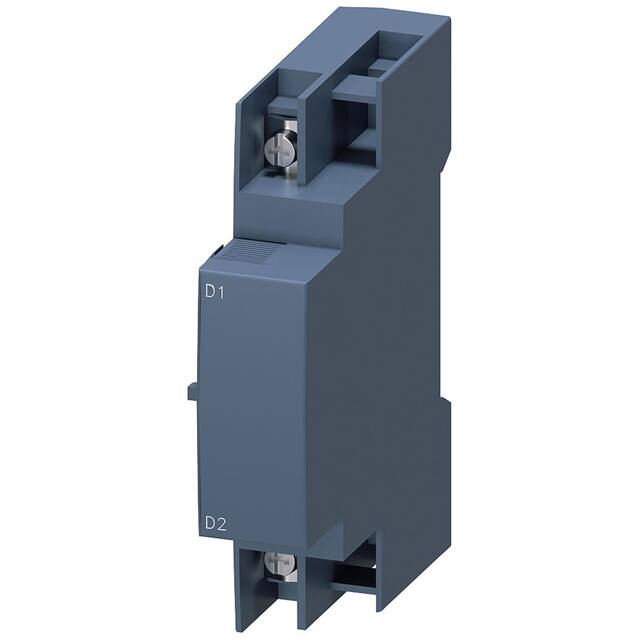

The Siemens 3RV29024AP0 is an undervoltage release designed for use with the 3RV2 series of circuit breakers. This accessory provides essential protection for motor circuits by ensuring the circuit breaker trips when the control supply voltage drops to a critical level.
This undervoltage release operates on an AC control supply voltage, with rated values of 230V at 50 Hz and 240V at 60 Hz. It features a snap-on mounting method for easy installation onto compatible 3RV2 circuit breakers, including sizes S00, S0, S2, and S3. The unit has a width of 18.5 mm, a height of 90 mm, and a depth of 68 mm.
With a degree of pollution of 3 and an insulation voltage rated value of 690V, the 3RV29024AP0 is built for robust industrial environments. It offers IP00 protection on the front and finger-safe touch protection. The design incorporates fuse protection for short-circuit scenarios. Operating ambient temperatures range from -20°C to +60°C, with storage temperatures from -50°C to +80°C.
The control supply voltage is AC, rated at 230V for 50 Hz and 240V for 60 Hz.
It features snap-on mounting.
The operating ambient temperature range is -20°C to +60°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
