| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Depth | |
| For Use With | |
| Height | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Width |

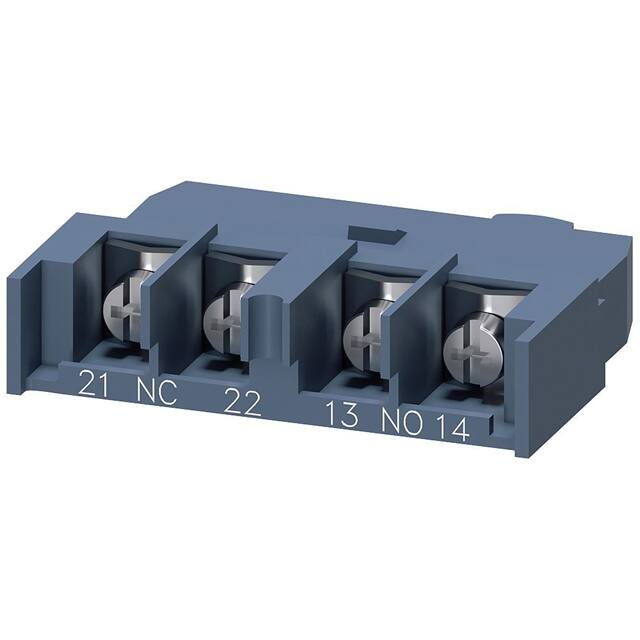

The Siemens 3RV29014E is a transverse auxiliary switch from the SIRIUS product line, designed for front mounting on 3RV2 series circuit breakers. This accessory provides one normally open (NO) and one normally closed (NC) instantaneous contact.
It features a ring terminal lug connection for the auxiliary and control circuit. The switch is compatible with circuit breaker sizes S00, S0, S2, and S3. The front protection class is IP20 with a cover, offering finger-safe touch protection.
With operational current ratings up to 2.5A at AC-12 and 1A at DC-13 (24V), it is suitable for various control applications. The operating temperature range is -20°C to +60°C.
Certifications include CE, UL, CSA, and CCC, indicating broad compliance for industrial use.
1 normally open and 1 normally closed contact.
-20 to +60 °C during operation.
IP20 with cover.
Ring terminal lug connection.
S00, S0, S2, and S3.
45 mm width, 12 mm height, 17 mm depth.
2.5 A at both 24 V and 230 V.
