| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Ambient Temperature | |
| Depth | |
| For Use With | |
| Height | |
| Mounting Type | |
| Terminal Type | |
| Width |

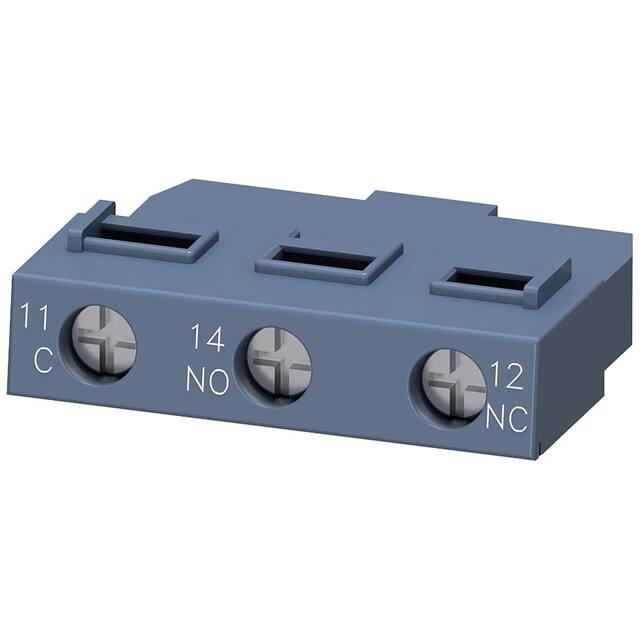

The Siemens 3RV29011G is a transverse auxiliary switch from the SIRIUS product line, designed for electronics compatibility. It offers one Changeover (CO) contact and utilizes screw-type terminals for connections.
This auxiliary switch is compatible with Siemens 3RV2 circuit breakers of sizes S00, S0, S2, and S3. It provides IP20 protection on the front and is finger-safe for vertical contact from the front. The operating temperature range is -20°C to +60°C, with a storage temperature range of -50°C to +80°C.
Installation is facilitated by a plug-in fixing method. The switch has a width of 45mm, a height of 12mm, and a depth of 17mm. It supports solid and finely stranded conductors with core end processing, with cross-sections ranging from 0.5 to 2.5 mm² (AWG 20-14).
Certifications include CE, UL, and CSA. The operational current for auxiliary contacts at DC-13 is 0.3A at 24V, 48V, and 60V.
The Siemens 3RV29011G is a transverse auxiliary switch designed for electronics compatibility.
The Siemens 3RV29011G has 1 Changeover (CO) contact, with 0 Normally Closed (NC) and 0 Normally Open (NO) contacts.
The operational current for auxiliary contacts is 0.3A at 24V, 48V, and 60V DC-13.
The Siemens 3RV29011G has a width of 45mm, a height of 12mm, and a depth of 17mm.
The operating temperature range for the Siemens 3RV29011G is -20°C to +60°C.
The Siemens 3RV29011G is compatible with 3RV2 circuit breaker sizes S00, S0, S2, and S3.
