| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Depth | |
| For Use With | |
| Height | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Terminal Type | |
| Width |

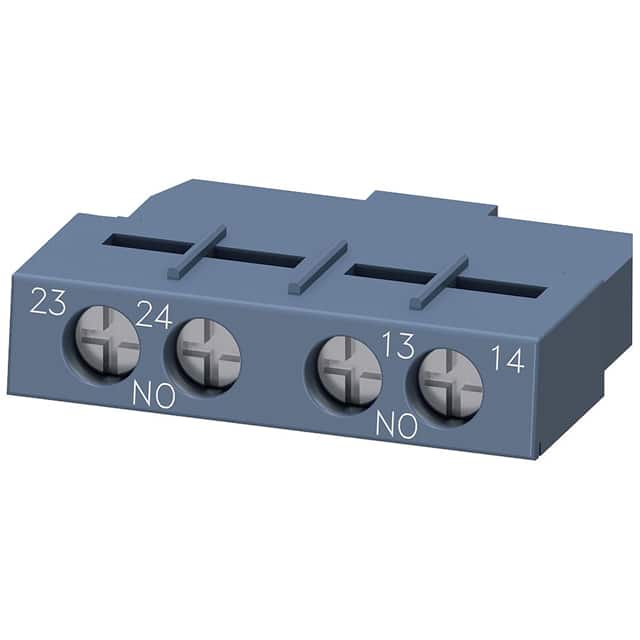

The Siemens 3RV29011F is a transverse auxiliary switch from the SIRIUS product line, specifically designed to complement 3RV series circuit breakers. This component offers 2 normally open (NO) instantaneous contacts, providing essential functionality for control and signaling circuits.
With a compact design measuring 45mm in width, 12mm in height, and 17mm in depth, it facilitates easy integration into existing panels. The switch features screw-type terminals for secure connections and supports conductor cross-sections ranging from 0.5 to 2.5 mm² for solid and finely stranded wires, as well as AWG 20-14 cables.
The auxiliary switch is rated for operational currents up to 2.5A at AC-12 and 230V, and 2A at AC-15 and 24V. It operates reliably within an ambient temperature range of -20°C to +60°C. The front of the unit provides IP20 protection and is finger-safe, ensuring operational safety.
This auxiliary switch is compatible with Siemens 3RV circuit breakers of sizes S00, S0, S2, and S3. It carries CE, UL, CSA, and CCC certifications, confirming its suitability for various industrial applications.
-20 to +60 °C
Transverse
2
S00, S0, S2, S3
Plug-in
IP20 on the front
Screw terminals
