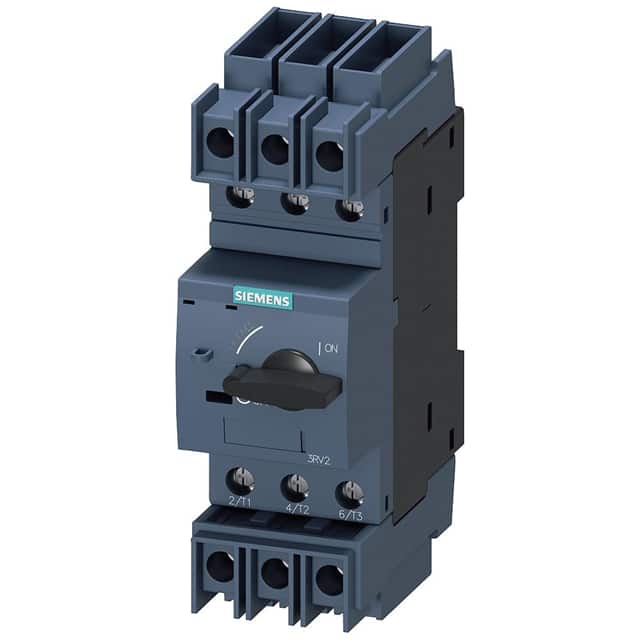

This Siemens 3RV27110CD10 is a Thermal Magnetic circuit breaker designed for system protection according to UL 489 and CSA C22.2 No. 5 standards. It is part of the SIRIUS 3RV2 series and comes in size S00.
The circuit breaker has 3 poles and an operational current rating of 0.25A. It supports a wide operating voltage range from 20V to 690V, with a maximum rated voltage of 690V for AC-3 and AC-3e applications. The device offers a high breaking capacity of up to 100 kA at various voltages.
Key protective functions include overload release via thermal mechanism and magnetic trip for short-circuit protection. The response value for the instantaneous short-circuit trip unit is 3.3A. It is designed for DIN rail mounting and features a rotary actuator.
Environmental specifications include an operating temperature range of -20°C to +60°C and an installation altitude limit of 2000m. The product is RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current rating is 0.25 A.
The maximum rated operating voltage is 690 V.
It is a Thermal Magnetic circuit breaker.
It has 3 poles.
The operating temperature range is -20 to +60 °C.
Yes, it is RoHS3 Compliant.
