| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Relative Humidity | |
| Voltage | |
| Voltage Rating |

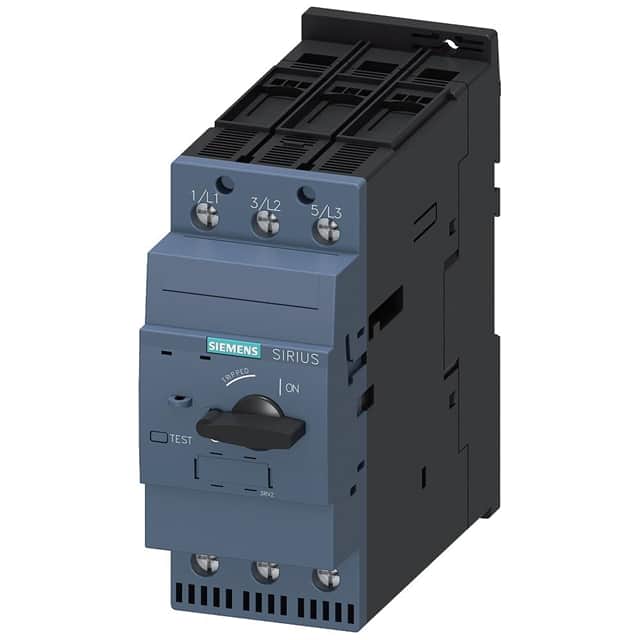

The Siemens 3RV23324WC10 is a size S2 circuit breaker designed for use in starter combinations. It offers a rated current of 52A and can operate at voltages up to 690V.
This circuit breaker has a 3-pole configuration for the main current circuit and a rated operating frequency of 50-60 Hz. It provides a breaking capacity of up to 100 kA at 240V and 400V.
The device is suitable for DIN rail mounting and features a rotary actuator. It has a mechanical and electrical endurance of typically 50,000 switching cycles. The operating temperature range is -20 to +60 °C.
Key electrical specifications include a power loss of 24.5W at rated current in a hot operating state and a surge voltage resistance of 6 kV. The N-release is rated at 741A.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current for the Siemens 3RV23324WC10 circuit breaker is 52A at AC-3 and AC-3e at 400V.
The maximum operating voltage for the Siemens 3RV23324WC10 circuit breaker is 690V.
The Siemens 3RV23324WC10 has 3 poles for the main current circuit.
The breaking capacity (Icu) at AC 400V is 100 kA, and the operating short-circuit current (Ics) at AC 400V is 50 kA.
The operating temperature range for the Siemens 3RV23324WC10 is -20 to +60 °C.
The circuit breaker size is S2.
