| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Voltage Rating |

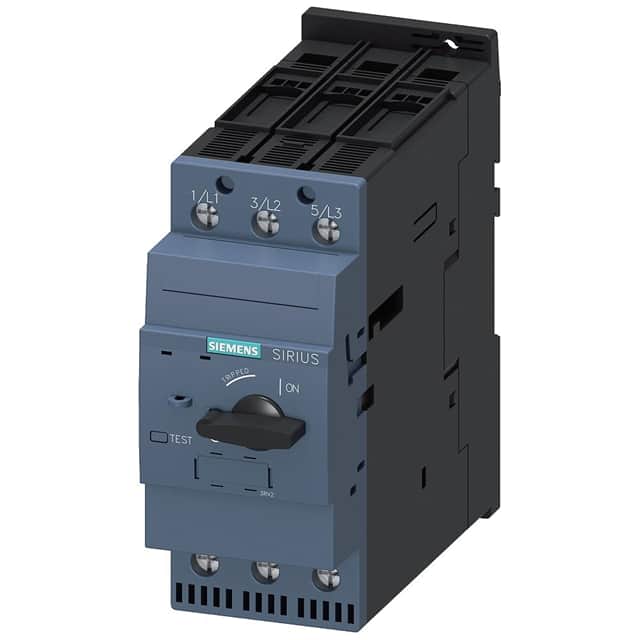

This Siemens 3RV23324DC10 is a circuit breaker from the SIRIUS line, specifically designed for starter combinations. It is a size S2 breaker with a rated current of 25A and a magnetic trip unit.
The breaker operates with a 3-pole configuration and supports a wide operating voltage range from 20V to 690V, with a maximum rated voltage of 690V for AC-3 and AC-3e applications. It is suitable for frequencies of 50 to 60 Hz.
Key electrical performance includes a breaking capacity of up to 100 kA at 240V and 400V. The instantaneous short-circuit trip unit responds at 325A. For motor applications, it has a full-load current rating of 25A at 480V and 600V.
Designed for DIN rail mounting, this circuit breaker offers a mechanical service life of 50,000 switching cycles. It operates within an ambient temperature range of -20°C to +60°C and has a maximum installation altitude of 2,000 meters.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current for the Siemens 3RV23324DC10 circuit breaker is 25A.
The maximum operating voltage for the Siemens 3RV23324DC10 circuit breaker is 690V.
The Siemens 3RV23324DC10 circuit breaker has 3 poles.
This circuit breaker supports DIN rail mounting.
The operating temperature range for the 3RV23324DC10 is -20°C to +60°C.
