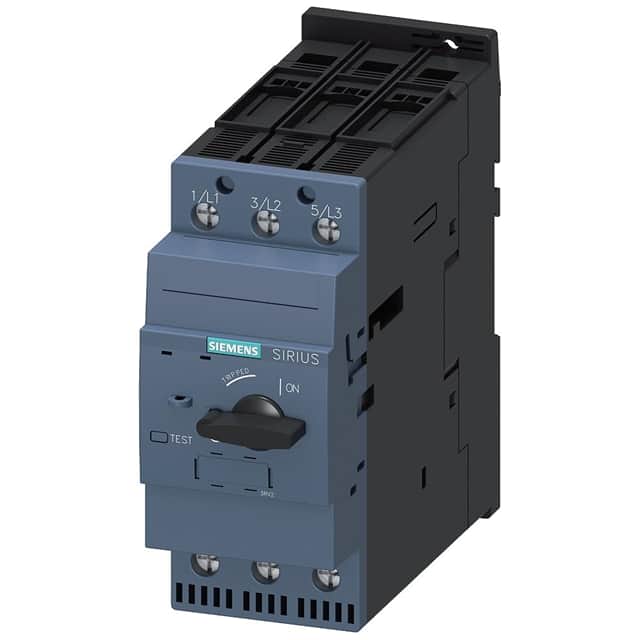

This Siemens 3RV23314RC10 is a size S2 circuit breaker designed for starter combinations. It offers a rated current of 80A and a maximum operating voltage of 690V. The breaker utilizes a magnetic trip design for short-circuit protection and has a standard switching capacity.
Key electrical specifications include a breaking capacity (Icu) of 100 kA at 240V and 65 kA at 400V. It also provides a rated operational current of 80A at AC-3, 400V. The device supports a wide operating voltage range from 20V to 690V and operates at frequencies of 50 to 60 Hz.
With a mechanical and electrical endurance of typically 20,000 switching cycles, this circuit breaker is built for reliability. It operates within an ambient temperature range of -20°C to +60°C and can be installed at altitudes up to 2,000 meters. The unit is designed for DIN rail mounting, facilitating easy integration into control panels and systems.
This circuit breaker is suitable for applications requiring robust protection and reliable operation in industrial environments. Its specifications align with standard industrial requirements for motor control and circuit protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current of the Siemens 3RV23314RC10 circuit breaker is 80 A.
The maximum operating voltage for the Siemens 3RV23314RC10 circuit breaker is 690 V.
The 3RV23314RC10 circuit breaker uses DIN Rail mounting.
The breaking capacity (Icu) at AC at 400 V rated value is 65 kA.
The operating ambient temperature range for this circuit breaker is -20 to +60 °C.
