| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage | |
| Voltage Rating |

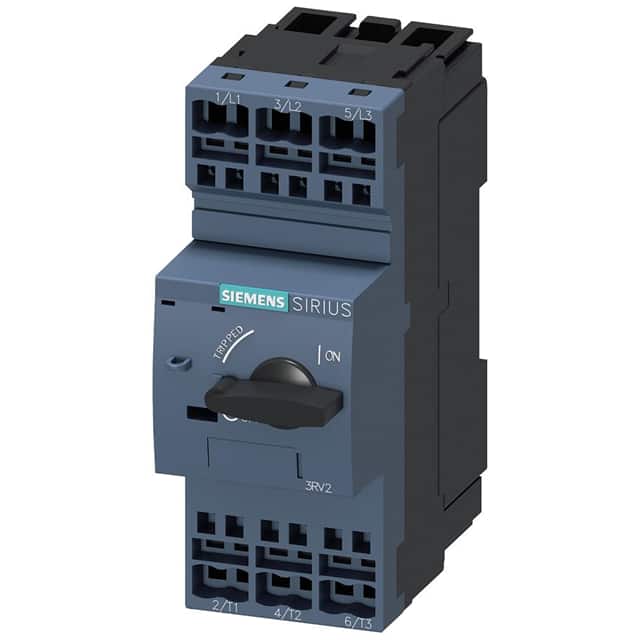

The Siemens 3RV23211GC20 is a 3-pole circuit breaker from the SIRIUS 3RV2 series, designed for starter combinations. This size S0 breaker has a rated operational current of 6.3A and can operate at voltages up to 690V.
Key electrical specifications include a breaking capacity of 100 kA at 400V and a 6.3A full-load current rating for 3-phase AC motors at 480V. The breaker is suitable for DIN rail mounting and features a rotary actuator.
With a mechanical service life of 100,000 switching cycles and an operating temperature range of -20 to +60°C, this circuit breaker is built for demanding industrial applications. It offers standard switching capacity and is compliant with various approval agencies including UL, CSA, and VDE.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated operational current is 6.3 A.
The maximum operating voltage is 690 V.
It has 3 poles for the main current circuit.
The mounting type is DIN Rail.
The operating ambient temperature range is -20 to +60 °C.
The breaking capacity (Icu) at 400V is 100 kA.
