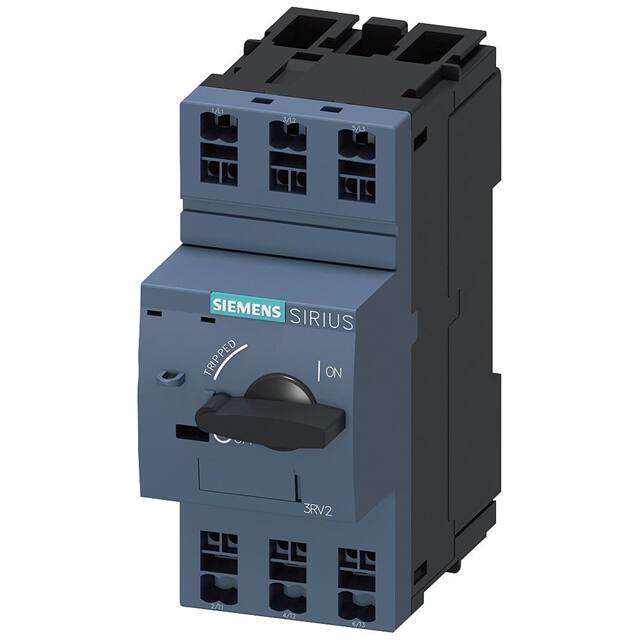

This Siemens 3RV23111GC20 is a circuit breaker from the SIRIUS 3RV2 series, specifically designed for starter combinations. It is size S00 and features a 3-pole main current circuit.
The breaker has a rated current of 6.3A and can operate at voltages up to 690V. It offers a breaking capacity of up to 100 kA at 400V and 500V, and 6 kA at 690V. The N-release is rated at 82A.
With a mechanical service life of typically 100,000 switching cycles for both main and auxiliary contacts, and electrical endurance also at 100,000 cycles, this circuit breaker is built for durability. It operates within an ambient temperature range of -20 to +60 °C and mounts conveniently on a DIN rail.
Additional technical data includes a power loss of 7.25W at AC in hot operating state and a surge voltage resistance of 6 kV. The shock resistance is rated at 25g / 11 ms according to IEC 60068-2-27.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 6.3 A.
The maximum operating voltage is 690 V.
The ambient temperature during operation is -20 to +60 °C.
The RoHS status is RoHS3 Compliant.
