| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Relative Humidity | |
| Storage Temperature | |
| Voltage Rating |

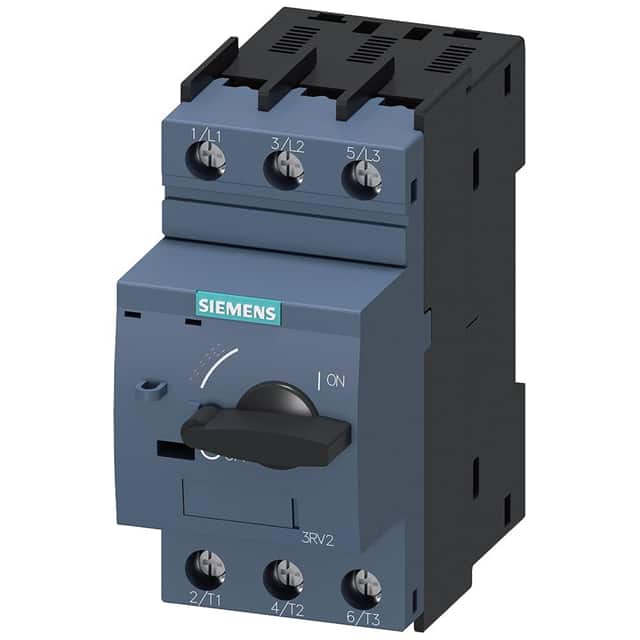

The Siemens 3RV23111GC10 is a circuit breaker in size S00, designed for starter combinations. It offers a rated current of 6.3A and a maximum operating voltage of 690V for AC-3 and AC-3e applications.
This circuit breaker has a 3-pole configuration and is suitable for DIN rail mounting. It provides a breaking capacity of up to 100 kA at 400V and features a magnetic trip unit with an instantaneous response value of 82A.
With a mechanical service life of 100,000 switching cycles for both main and auxiliary contacts, and an electrical endurance of 100,000 cycles, the 3RV23111GC10 is built for reliability. The operating temperature range is -20 to +60 °C.
Key technical data includes a power loss of 7.25W at AC in hot operating state, an insulation voltage of 690V, and a surge voltage resistance of 6 kV. It also supports auxiliary switch extensions.
6.3 A under AC-3 at 400 V.
20 to 690 V AC.
-20 to +60 °C.
100 kA (Icu and Ics).
100,000 switching cycles.
Yes, it has a full-load current rating of 6.3 A for 3-phase AC motors.
Size S00.
