| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Voltage Rating |

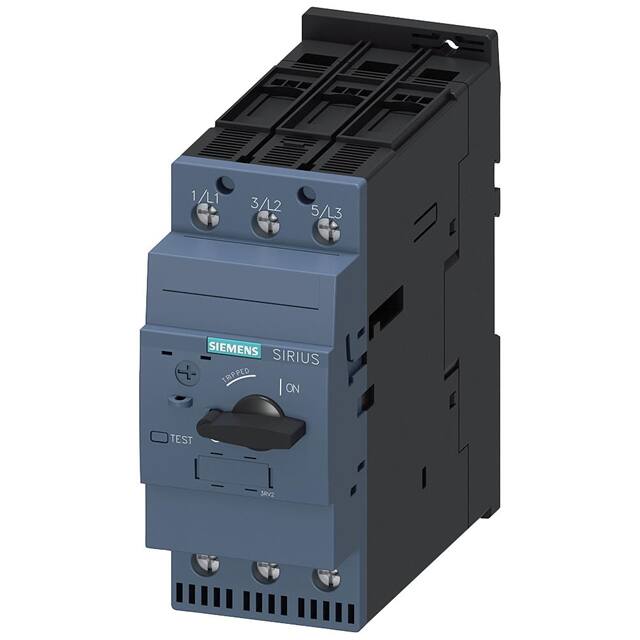

The Siemens 3RV20324TA10 is a robust circuit breaker engineered for reliable motor protection. It belongs to the SIRIUS 3RV2 series and features a thermal magnetic overload release with an adjustable current response value ranging from 12 to 17 Amperes. This breaker is built for a maximum operating voltage of 690V and has a breaking capacity of up to 100 kA at 240V.
Designed for ease of integration, the 3RV20324TA10 supports DIN rail mounting and features screw terminals. It includes essential protective functions such as phase failure detection and operates with a CLASS 10 trip class. The device also offers a mechanical and electrical endurance of typically 50,000 switching cycles, ensuring long-term operational reliability in demanding industrial environments.
With ATEX certification, this circuit breaker is suitable for use in potentially explosive atmospheres. It operates effectively within an ambient temperature range of -20 to +60 °C and meets various international approval standards including CE, UL, and VDE.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The adjustable current response value for the current-dependent overload release is 12 to 17 A.
The circuit breaker has a rated operating voltage of 690 V.
The trip class is CLASS 10.
It uses a thermal overload release.
Yes, it includes phase failure detection.
The mounting type is DIN Rail.
