3RV20211JA10
Siemens

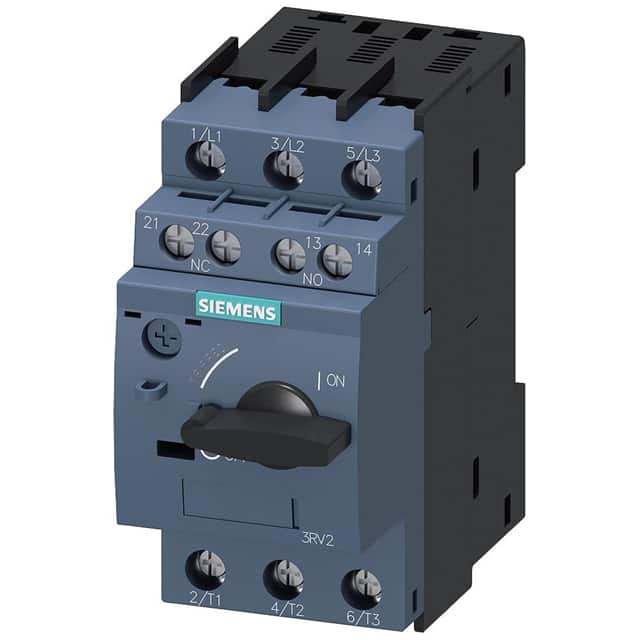

The Siemens 3RV20211JA10 is a 3-pole circuit breaker designed for motor protection. It offers an adjustable current range of 7-10A and a voltage rating of 690V.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Lead Style | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |
The Siemens 3RV20111JA15 is a robust circuit breaker engineered for reliable motor protection. It belongs to the SIRIUS 3RV2 series and is built with a thermal overload release mechanism, offering adjustable current settings from 7 to 10 Amperes.
This 3-pole breaker operates at a rated voltage of up to 690V and has a maximum breaking capacity of 100 kA at 240V AC. It includes auxiliary contacts, specifically 1 normally open (NO) and 1 normally closed (NC) contact, facilitating integration into control circuits. The breaker is designed for standard switching capacity and features phase failure detection.
Mounting is facilitated via a DIN rail, making installation straightforward in control panels and enclosures. The operating temperature range is -20 to +60 °C, suitable for various industrial environments. The mechanical and electrical endurance are rated at a typical 100,000 switching cycles, ensuring long-term reliability.
20 to 690 V AC.
DIN Rail.
-20 to +60 °C.
7 to 10 A.
Yes, one normally open and one normally closed contact.
CLASS 10.
CCC, CSA, EAC, IECEx, UL.
