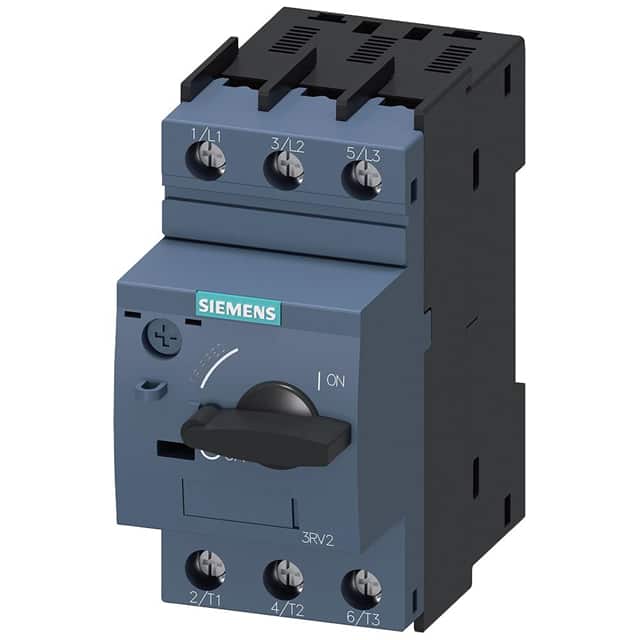

The Siemens 3RV20111JA10 is a circuit breaker in size S00, specifically designed for motor protection applications. It operates with a thermal overload release and offers an adjustable current response value ranging from 7 to 10 Amps.
This device supports a rated operational current of 10A and can handle a maximum operating voltage of 690V across AC-3 and AC-3e applications. It provides a breaking capacity of up to 100 kA at 240V and 400V. The circuit breaker is equipped with phase failure detection and has a trip class of CLASS 10.
Designed for standard switching capacity, the 3RV20111JA10 is suitable for mounting on a DIN rail. It meets ATEX directive requirements and holds certifications from various agencies including CCC, CSA, EAC, IECEx, and UL. The operating temperature range is -20 to +60 °C.
The adjustable current response value ranges from 7 to 10 A.
Both Icu and Ics are 100 kA at 400 V AC.
Operating ambient temperature range is -20 to +60 °C.
Yes, it includes phase failure detection.
The trip class is CLASS 10.
Yes, ATEX type of protection is Ex II (2) GD with certificate DMT 02 ATEX F 001.
It mounts on DIN rail with a rotary actuator.
