| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Height | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage | |
| Voltage Rating | |
| Width |

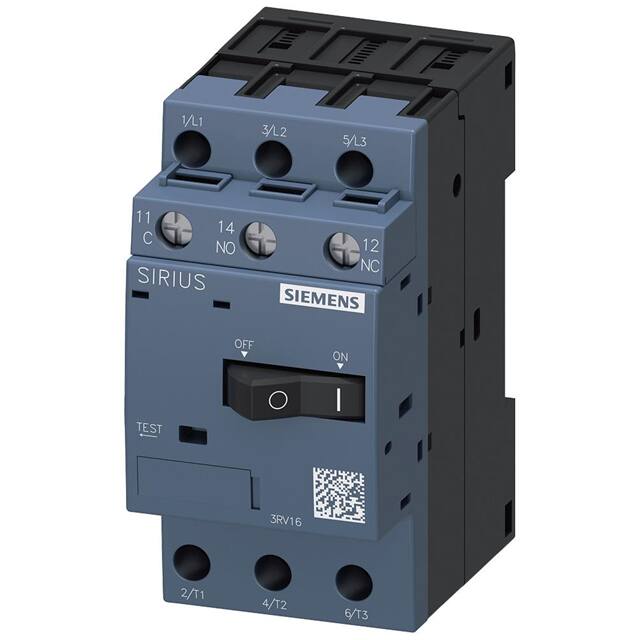

This Siemens 3RV1611-1DG14 is a thermal magnetic circuit breaker from the SIRIUS 3RV1 series. It is designed for robust protection with a 3-pole configuration, a rated operational current of 3A, and a maximum operating voltage of 690V.
The circuit breaker offers a breaking capacity of up to 100 kA at 240V and 50 kA at 400V. It includes phase failure detection and an instantaneous short-circuit trip response value of 20A. The device is suitable for various applications requiring reliable circuit protection.
Mounting is facilitated via a standard 35mm DIN rail, with dimensions of 90mm height and 45mm width. The mechanical service life of the main and auxiliary contacts is rated for a typical 10,000 switching cycles. Ambient operating temperatures range from -20°C to +60°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated operating voltage ranges from 20 V to 690 V.
The rated operational current is 3 A.
This circuit breaker has 3 poles for the main current circuit.
It supports screw and snap-on mounting onto a 35 mm standard mounting rail according to DIN EN 60715.
The ambient temperature during operation is -20 to +60 °C.
Yes, it features phase failure detection.
The breaking capacity (Icu) at AC at 400 V rated value is 50 kA.
