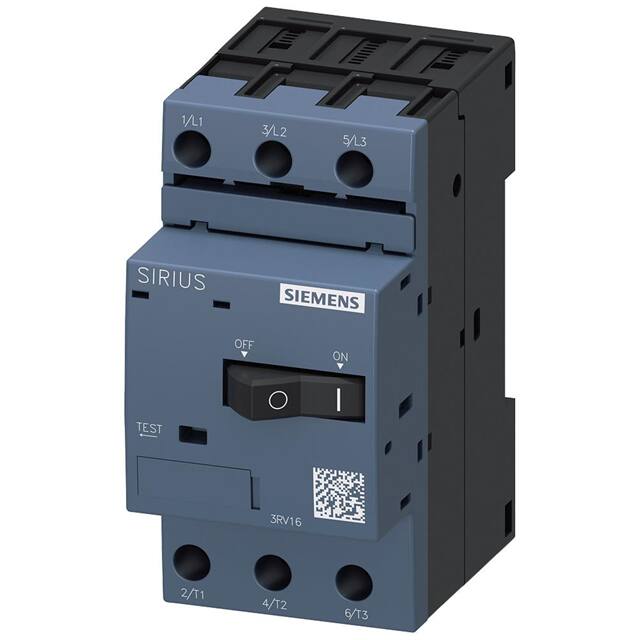

This Siemens 3RV1611-0BD10 circuit breaker is part of the SIRIUS 3RV1 series, designed for fuse monitoring applications. It operates with a thermal magnetic trip mechanism and offers a rated operational current of 0.2A at AC-3 and AC-3e at 400V.
The breaker is suitable for a wide operating voltage range from 20V to 690V, with a maximum rated voltage of 690V at AC-3 and AC-3e. It has a 3-pole configuration for the main current circuit and supports a frequency range of 50-60 Hz.
Key electrical protection features include phase failure detection and a maximum breaking capacity (Icu) of 100 kA at various voltages up to 690V. The instantaneous short-circuit trip unit has a response value of 1.2A.
Mechanically, the circuit breaker is designed for DIN rail mounting and has dimensions of 90mm height, 45mm width, and 75mm depth. It requires specific spacing for grounded and live parts during installation. The mechanical service life for both main and auxiliary contacts is rated at a typical 100,000 switching cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational current rating is 0.2 A.
The rated operating voltage is 690 V.
It has 3 poles for the main current circuit.
It is a Thermal Magnetic circuit breaker.
The breaking capacity (Icu) at AC at 400 V is 100 kA.
Yes, it includes phase failure detection.
It is mounted on a 35 mm standard mounting rail according to DIN EN 60715 using screws and snap-on mounting.
