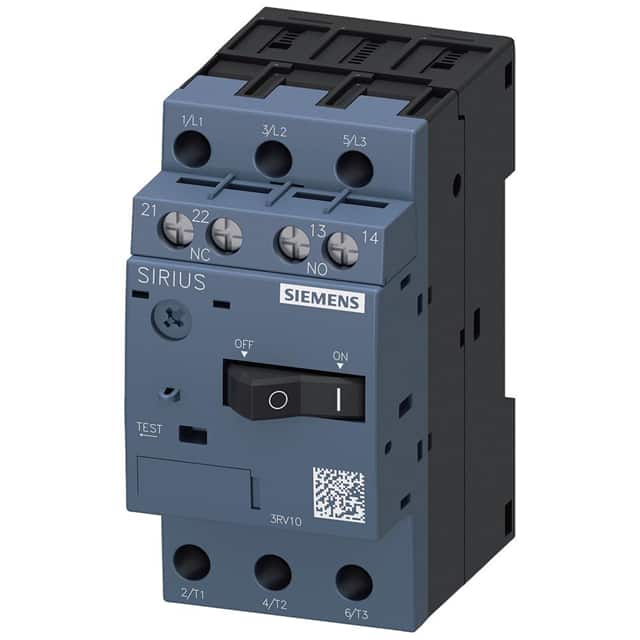

The Siemens 3RV10111KA15 is a robust circuit breaker from the SIRIUS 3RV1 series, specifically engineered for motor protection applications. This device is built with a thermal magnetic overload release and has an adjustable current response value ranging from 9 to 12.5 A, with a rated operational current of 12 A at 400V AC-3.
With a size S00 and a 3-pole configuration, this circuit breaker offers a maximum breaking capacity of 100 kA at 240V AC and 50 kA at 400V AC. It operates within a voltage range of 20 to 690V and supports a frequency of 50 to 60 Hz. The unit includes one normally open (NO) and one normally closed (NC) auxiliary contact.
Designed for standard switching capacity, the 3RV10111KA15 is suitable for installation on a DIN rail. It operates reliably within an ambient temperature range of -20 to +60 °C and has a mechanical and electrical endurance of typically 100,000 switching cycles. The circuit breaker also features phase failure detection and a CLASS 10 trip class for enhanced protection.
This component is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1. Its robust construction and comprehensive protective functions make it a reliable choice for industrial motor control and protection systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 20 to 690 V.
The adjustable current response value for the current-dependent overload release is 9 to 12.5 A.
The operational current rating at AC-3 at 400 V is 12 A.
The trip class is CLASS 10.
Yes, it features phase failure detection.
The ambient temperature during operation is between -20 and +60 °C.
It has 1 normally open (NO) and 1 normally closed (NC) auxiliary contact.
