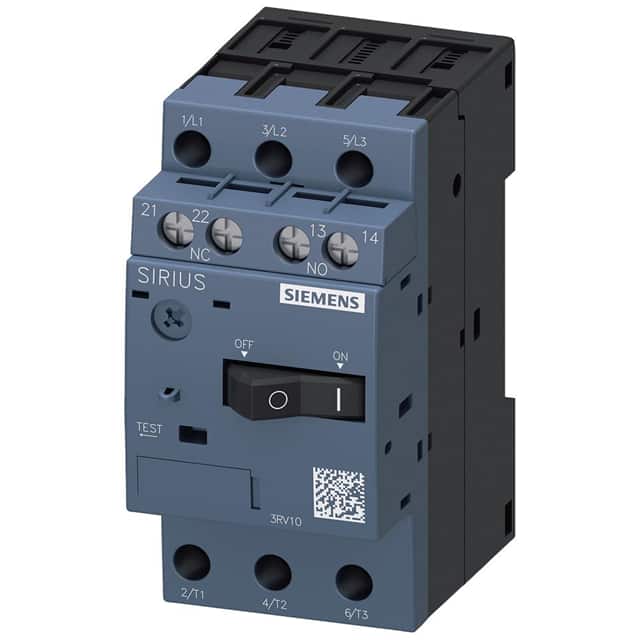

This Siemens 3RV1011-1EA15 is a circuit breaker from the SIRIUS line, specifically designed for motor protection applications. It features a size S00 frame and a thermal magnetic trip mechanism.
The breaker has 3 poles for the main circuit and an adjustable current response value for overload protection ranging from 2.8 to 4 A. It is rated for a maximum operating voltage of 690 V and a frequency of 50 to 60 Hz. The operational current at AC-3 and 400 V is 4 A, with corresponding operating power ratings up to 1.5 kW at 400 V and 3 kW at 690 V.
It includes a transverse auxiliary switch with 1 normally closed (NC) and 1 normally open (NO) contact. The device offers a breaking capacity of up to 100 kA at 240 V and 400 V. Environmental conditions during operation include an ambient temperature range of -20 to +60 °C and relative humidity of 10 to 95%.
Mounting is designed for DIN rail installation. The breaker is approved by multiple agencies including CE, CSA, and UL, ensuring compliance for various industrial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 20 to 690 V.
The adjustable current response value is 2.8 to 4 A.
The operational current at AC-3 for 400V is 4 A.
The ambient temperature during operation is -20 to +60 °C.
Yes, it features phase failure detection.
The trip class is CLASS 10.
It is designed for DIN rail mounting.
