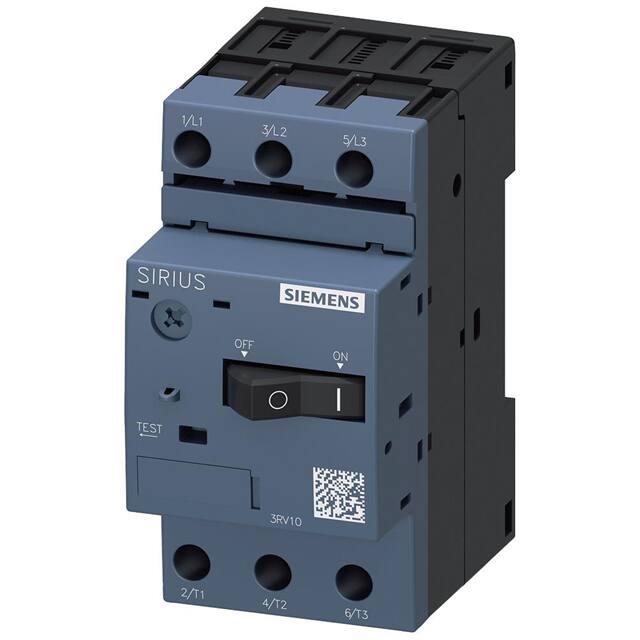

The Siemens 3RV1011-0JA10 is a robust circuit breaker engineered for reliable motor protection. It belongs to the SIRIUS 3RV1 series and features a size S00 frame.
This device provides thermal overload protection with an adjustable current response range of 0.7 to 1 A and a fixed instantaneous short-circuit trip unit response of 13 A. It is designed for a maximum operating voltage of 690 V and operates across a frequency range of 50 to 60 Hz. The breaker has a 3-pole configuration and a trip class of 10.
Key electrical specifications include a maximum short-circuit breaking capacity (Icu) of 100 kA at various voltage levels up to 690 V. It also offers phase failure detection. The mechanical service life for both main and auxiliary contacts is rated at a typical 100,000 switching cycles.
Designed for DIN rail mounting, this circuit breaker operates within an ambient temperature range of -20 to +60 °C. Its dimensions are 49.00 x 100.00 x 84.00 mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The trip class is 10.
The operating voltage range is 20 to 690 V.
Yes, it includes an auxiliary switch.
The maximum short-circuit breaking capacity is 100 kA.
It mounts on a DIN rail.
