Mfr Part #:

3P25U3/27

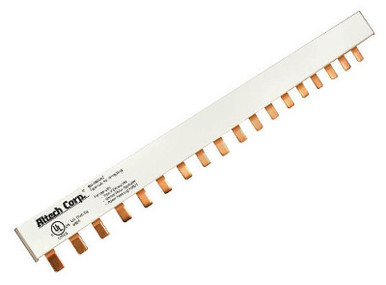

The Altech Corporation 3P25U3/27 is a 3-phase bus bar designed for use with miniature molded circuit breakers. It offers a 100A/480VAC rating and 25mm² conductor size.

Stock on Request

3P25U3/27 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Altech Corporation
Accessory Type	Bus Bar
For Use With	Miniature Molded Circuit Breakers
Number of Pins	27
SVHC Present	Not Present

View Similar Products (0)

3P25U3/27 Description

Short technical summary and product information.

The Altech Corporation 3P25U3/27 is a 3-phase bus bar accessory, specifically designed for integration with miniature molded circuit breakers. This component features a conductor size of 25mm² and is rated for 100 Amperes at 480 Volts AC.

With 27 pins, this bus bar facilitates efficient power distribution in multi-phase electrical systems. It is constructed to meet industrial standards, ensuring reliable performance in demanding applications. The product is identified by SKU 3P25U3/27 and is part of Altech Corporation's line of industrial automation components.

This bus bar is suitable for applications requiring robust and organized electrical connections. Its design emphasizes ease of installation and maintenance within control panels and power distribution units. The RoHS3 compliance indicates adherence to environmental regulations regarding hazardous substances.

3P25U3/27 Quick Information

Product Type: Bus Bar

Canonical Name: Altech Corporation 3P25U3/27 Bus Bar

Subcategory: Accessories

3P25U3/27 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

3P25U3/27 Features

3-phase bus bar for circuit breakers.
Rated for 100A and 480VAC operation.
Features 25mm² conductor size.
Equipped with 27 pins for connections.
RoHS3 compliant for environmental standards.

3P25U3/27 Applications

Used in industrial power distribution.
Suitable for control panel wiring.
Facilitates multi-phase connections.
Integrates with molded circuit breakers.

3P25U3/27 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the voltage rating of the 3P25U3/27 bus bar?

480 VAC.

What is the current rating?

100 A.

How many phases does it support?

3 phases.

How many pins does it have?

27 pins.

What is the cross-sectional area?

25 mm².
