Mfr Part #:

3P18U3H/12

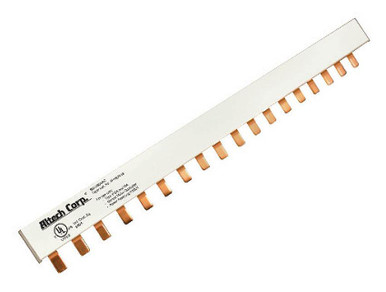

The Altech Corporation 3P18U3H/12 is a 3-phase busbar designed for use with miniature molded circuit breakers. It offers an 80A current rating and 480VAC voltage.

Stock on Request

3P18U3H/12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Altech Corporation
Accessory Type	Bus Bar
For Use With	Miniature Molded Circuit Breakers
SVHC Present	Present
Weight	0.25 LBS

View Similar Products (0)

3P18U3H/12 Description

Short technical summary and product information.

This Altech Corporation 3P18U3H/12 is a 3-phase busbar accessory, specifically designed for integration with miniature molded circuit breakers. It features a robust 80A current rating and a 480VAC operating voltage, making it suitable for demanding electrical applications.

The busbar is equipped with 12 pins and has a pole spacing of 1/2, with a width of 18mm². Its construction is intended to facilitate efficient power distribution and connection within electrical panels and systems.

Altech Corporation, founded in 1984, is known for its high-quality industrial automation components. They are ISO 9001:2015 certified, ensuring reliable product manufacturing. This busbar is part of their accessory line, complementing their circuit protection offerings.

3P18U3H/12 Quick Information

Product Type: Bus Bar

Canonical Name: Altech Corporation 3-Phase Busbar

Subcategory: Accessories

3P18U3H/12 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

3P18U3H/12 Features

3-phase busbar for circuit breakers.
80A current rating.
480VAC operating voltage.
12 pins with 1/2-pole spacing.
18mm² width.

3P18U3H/12 Applications

Used in 3-phase power distribution panels
Suitable for industrial control cabinet wiring
Supports 12-pin busbar connection systems
Designed for 80A circuit breaker accessories
Applicable for commercial electrical installations

3P18U3H/12 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the current rating of the Altech Corporation 3P18U3H/12 busbar?

The busbar has a current rating of 80A.

What is the operating voltage for the 3P18U3H/12 busbar?

The operating voltage is 480VAC.

How many pins does the 3P18U3H/12 busbar have?

The busbar is equipped with 12 pins.

What is the pole spacing on the 3P18U3H/12 busbar?

The pole spacing is 1/2-pole.

What is the width of the 3P18U3H/12 busbar?

The width is 18mm².

What is the RoHS status of the 3P18U3H/12 busbar?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this busbar?

The MSL is 1 Unlimited.
