| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Length | |
| Mounting Type | |
| Number of Pins | |
| SVHC Present |

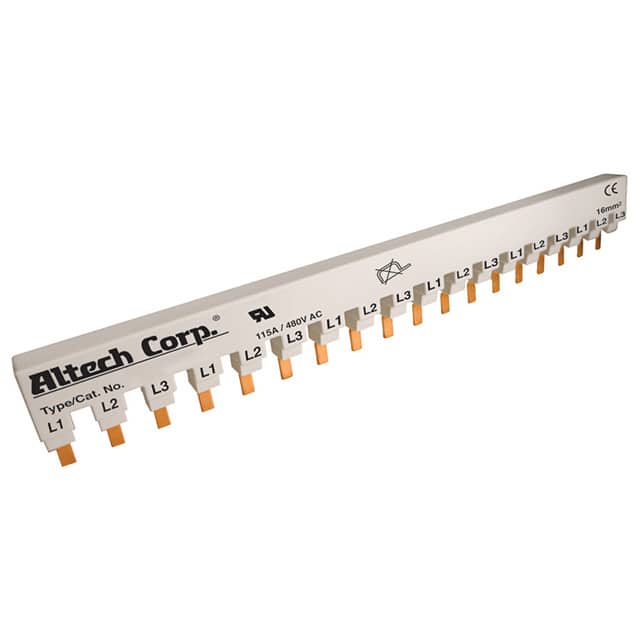

The Altech Corporation 3P16UL3/18 is a bus bar accessory designed to simplify the connection of miniature molded circuit breakers. This specific model features 18 positions, facilitating the jumpering of multiple poles.
Constructed with a copper busbar and a polyamide insulation housing, this busbar system is built for durability and electrical integrity. It boasts impressive electrical ratings, supporting up to 115A and 600V AC/DC. The system also provides a short circuit withstand rating of 10 kA, ensuring safety in demanding applications.
This busbar system is UL489 recognized and complies with various international standards including VDE 0660 Part 100, IEC 60749, and DIN EN 60947-1. Its design offers advantages such as installation time savings, panel space savings, and reduced maintenance compared to traditional wiring methods.
It is compatible with Altech's L-Series and ABL's UL-Series miniature circuit breakers, as well as most popular UL489 miniature circuit breakers on the market. The busbar has a length of 310.2 mm and is suitable for panel mounting.
The busbar is rated for 600V AC/DC.
The busbar is rated for 115A AC/DC.
The short circuit withstand rating is 10 kA.
It complies with UL 489, VDE 0660 Part 100, IEC 60749, and DIN EN 60947-1.
The busbar is made of copper and the housing is made of polyamide.
It has 18 positions.
The length is 310.2 mm.
