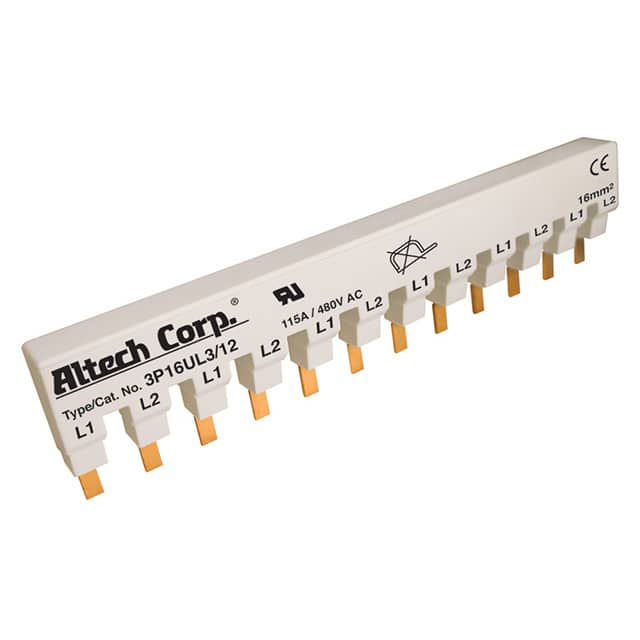

The Altech Corporation 3P16UL3/12 is a UL489 bus bar system designed to jumper up to 57 poles of miniature molded case circuit breakers. This specific model features 12 positions, facilitating efficient panel space utilization and reducing installation time.
The busbar is constructed with a copper busbar material and a polyamide insulation housing. It boasts high electrical ratings of 115A at 600V AC/DC and a short circuit withstand rating of 10 kA. The system is UL489 recognized and applies standards such as UL 489, VDE 0660 Part 100, IEC 60749, and DIN EN 60947-1.
This busbar system is compatible with Altech's L-Series and ABL's UL-Series miniature circuit breakers, as well as most popular UL489 miniature circuit breakers in the market. Power feeding can be achieved through methods like the P35ULT Power Feed Lug or the P50ULB Modular Direct Power Feed, both supporting a maximum input current of 115A per phase.
The Altech 3P16UL3/12 bus bar has electrical ratings of 115A and 600V AC/DC.
The busbar is made of copper.
The insulation material for the housing is polyamide.
The short circuit withstand rating is 10 kA.
This bus bar applies UL 489, VDE 0660 Part 100, IEC 60749, and DIN EN 60947-1 standards.
The 3P16UL3/12 bus bar has 12 positions.
The length of the bus bar is 310.2 mm.
