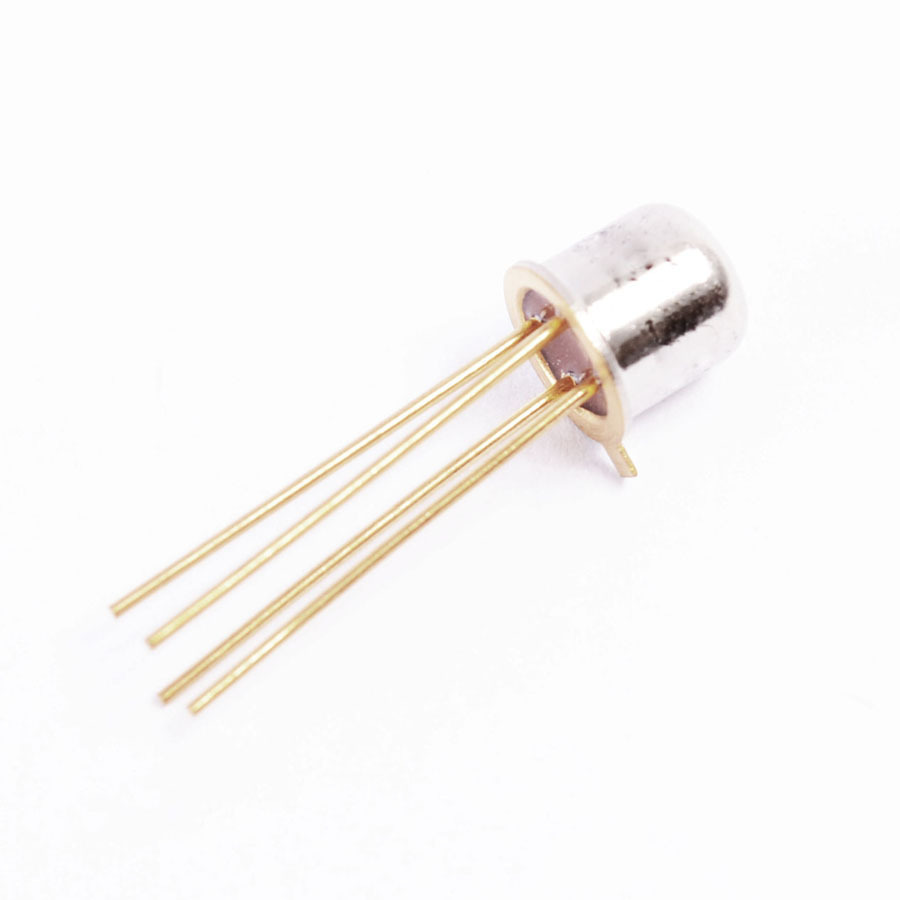

3N187 N-Channel JFET with 20V drain-source voltage, 5mA drain current, and 330mW power dissipation. In a TO-72 metal can package.
Mfr Part #:

3N187

Available from 1 distributors
Mfr Name: Harris Semiconductor
Harris Semiconductor
N-Channel JFET with 20V drain-source voltage, 5mA drain current, and 330mW power dissipation. In a TO-72 metal can package.
✓ Total Stock: 12,557 pcs

3N187 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
12,557 pcs
On Request
12557 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3N187 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
FET Type
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power
Supplier Device Package
Voltage
View Similar Products (0)

3N187 Description

Short technical summary and product information.

The 3N187 is an N-channel JFET (Junction Field-Effect Transistor) from Harris Semiconductor. It is designed for general-purpose analog switching and amplification circuits. Key electrical specifications include a maximum drain-source voltage (Vds) of 20V and a typical drain current (Idss) of 5mA at Vds=15V. The device features a low input capacitance (Ciss) of 8.5pF maximum at 15V, making it suitable for high-frequency applications. The gate-source cutoff voltage (Vgs(off)) is 6.5V. Power dissipation is rated at 330mW, and the operating junction temperature range spans from -65°C to 175°C.



The 3N187 is housed in a through-hole TO-206AF / TO-72-4 Metal Can package, with the supplier device package designated as TO-72. This robust metal can package provides excellent thermal performance and reliability. The component is RoHS3 compliant (unverified) and has an MSL of 1 (unlimited).



As a JFET, the 3N187 offers high input impedance and low noise, making it suitable for use in low-level signal processing, analog switches, and voltage-controlled resistors. Its wide operating temperature range allows use in harsh environments.

3N187 Quick Information

Product Type: JFET (Junction Field-Effect Transistor)
Canonical Name: 3N187 JFET N-Channel 20V 5mA
Subcategory: N-Channel JFET

3N187 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3N187 Features

  • N-Channel JFET with 20V drain-source voltage.
  • Typical drain current of 5mA at 15V.
  • Low input capacitance of 8.5pF maximum.
  • Through-hole TO-72 metal can package.
  • Wide operating temperature range -65°C to 175°C.

3N187 Applications

  • Low noise amplifier for RF applications.
  • High impedance buffer for sensor interfaces.
  • Analog switch in multiplexing circuits.
  • Voltage-controlled resistor in filter designs.

3N187 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating of the 3N187?

20V maximum.

What is the package type of the 3N187?

TO-206AF, TO-72-4 Metal Can through hole.

What is the operating temperature range of the 3N187?

-65°C to 175°C (junction).

Is the 3N187 RoHS compliant?

RoHS3 compliant (unverified).

What is the drain current (Idss) of the 3N187?

5mA typical at Vds=15V.

What is the input capacitance (Ciss) of the 3N187?

8.5pF maximum at Vds=15V.

What is the power dissipation of the 3N187?

330mW.
