| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Automotive Grade | |
| Circuit | |
| Contact Rating @ Voltage | |
| Features | |
| Illumination | |
| Industrial Grade | |
| Ingress Protection | |
| Lead Style | |
| Life Time | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Switch Mounting | |
| Tape & Reel | |
| Termination Style |

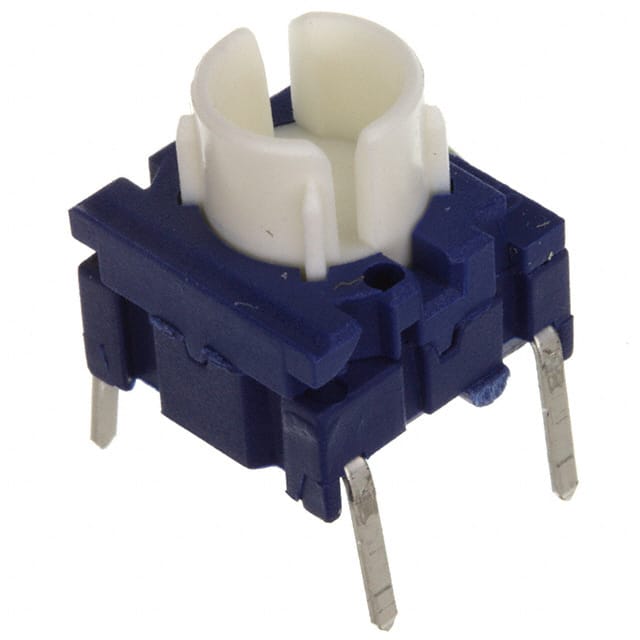

The MEC Switches 3FTL6 is a tactile switch designed for reliable operation in demanding environments. It features a single pole, single throw, normally open (SPST-NO) circuit configuration and a contact rating of 0.05A at 24VDC.
This switch is built for durability, offering IP67 sealing for protection against dust and water ingress. The operating temperature range spans from -40°C to 115°C, making it suitable for various industrial and commercial applications. The actuator type is a plunger designed for cap mounting, and it is top-actuated.
Mounting is achieved via a through-hole termination style with PC pins. The switch is sealed for flux protection, ensuring integrity during assembly processes. Its dimensions are 10.10mm x 10.10mm with an actuator height of 10.40mm off the PCB.
The Multimec® 3 series switch boasts a long operational life of 10,000,000 cycles, providing a dependable solution for applications requiring frequent actuation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.05A at 24VDC.
The operating temperature range is -40°C to 115°C.
The ingress protection rating is IP67, meaning it is dust-tight and waterproof.
The switch is rated for 10,000,000 operations.
It is a through-hole mounted switch with PC pin termination.
